Home
>>
Nissan-Datsun
>>
2014
>>
Versa Note S Plus
>>
Repair and Diagnosis
>>
Steering
>>
Electronic Steering
>>
Steering Control System
>>
Removal And Installation
>>
EPS Control Unit
>>
Exploded View
Exploded View

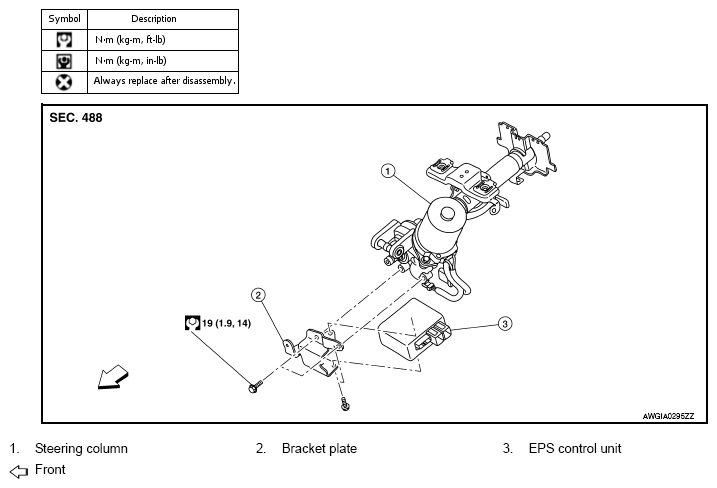

Fig 1: Exploded View Of EPS Control Unit With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
