IPDM E/R Relays

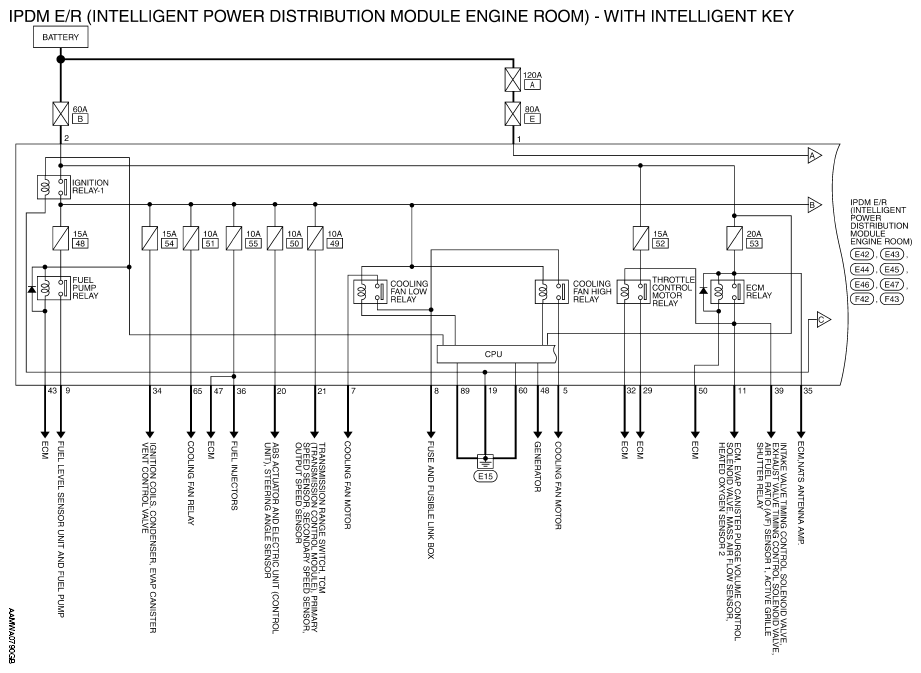

Fig 1: IPDM E/R Relays (With I-Key) (1 Of 2)
G09605046Courtesy of NISSAN NORTH AMERICA, INC.
IPDM E/R (WITH I-KEY) RELAY IDENTIFICATION

RELAY DESCRIPTION
Ignition Relay - 1
Fuel Pump Relay
Cooling Fan Low Relay
Cooling Fan High Relay
Throttle Control Motor Relay
ECM Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.

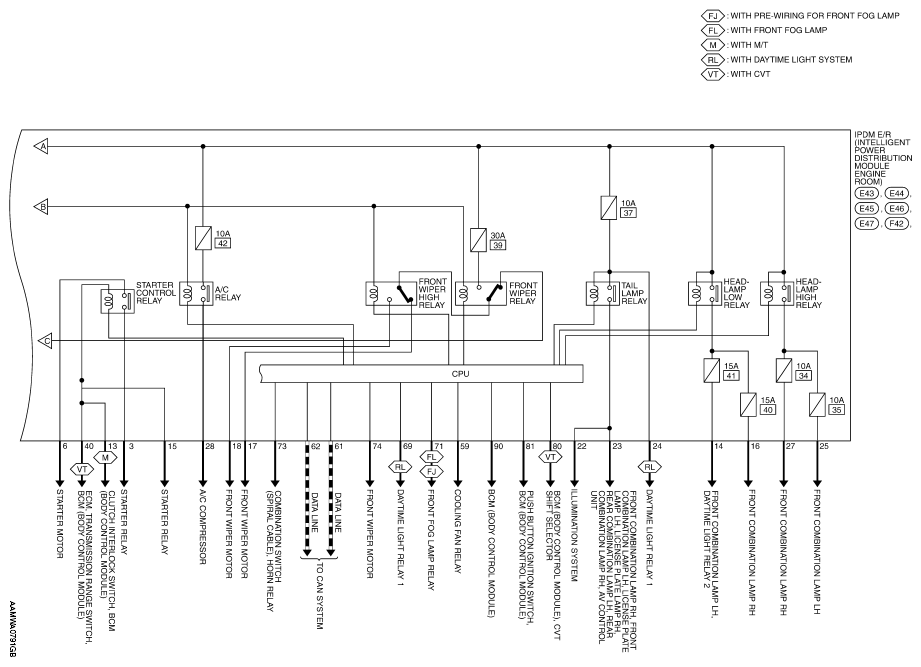

Fig 2: IPDM E/R Relays (With I-Key) (2 Of 2)
G09605047Courtesy of NISSAN NORTH AMERICA, INC.
IPDM E/R (WITH I-KEY) RELAY IDENTIFICATION

RELAY DESCRIPTION
Starter Control Relay
A/C Relay
Front Wiper High Relay
Front Wiper Relay
Tail Lamp Relay
Headlamp Low Relay
Headlamp High Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.
