Front Drive Shaft
>>
Exploded View
Exploded View

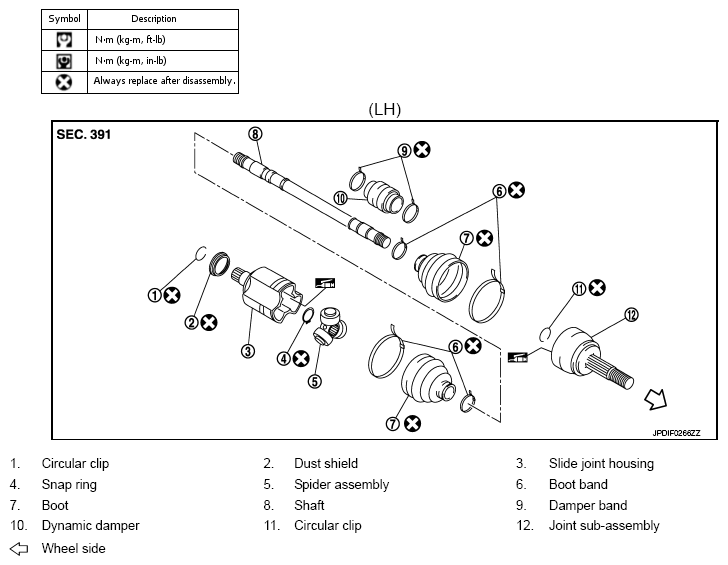

Fig 1: Exploded View Of Front Drive Shaft (LH)
Courtesy of NISSAN NORTH AMERICA, INC.

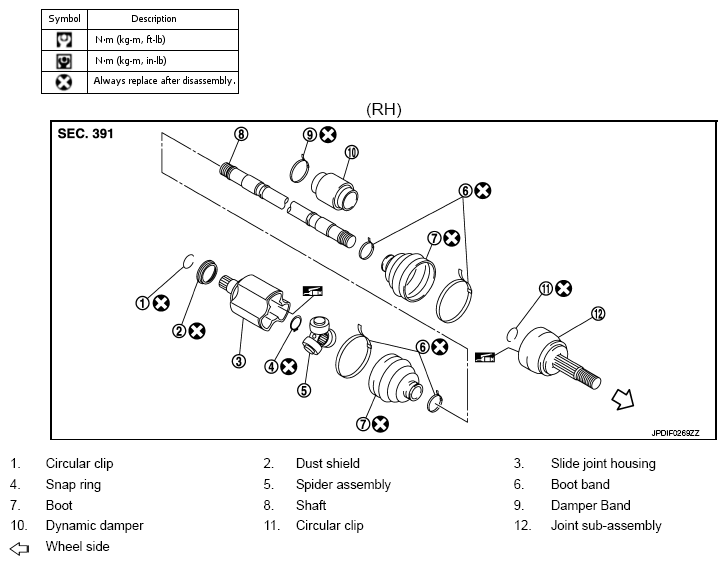

Fig 2: Exploded View Of Front Drive Shaft (RH)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
