Dynamic Damper Specifications

Unit: mm (in)

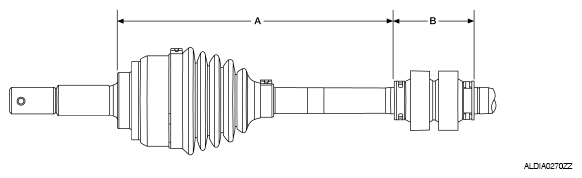

G08200078
Application M/T CVT
(LH) (RH) (LH) (RH)
Dimension (A) 240 ± 3 (9.45 ± 0.1) 457 ± 3 (17.99 ± 0.1) 242.9 ± 3 (9.56 ± 0.1) 457 ± 3 (17.99 ± 0.1)
Dimension (B) 70 (2.76)
