Sentra SR
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Starter
>>
Starting System
>>
Wiring Diagram
>>
Starting System (Without Intelligent Key)
>>
Connector End Views
Connector End Views

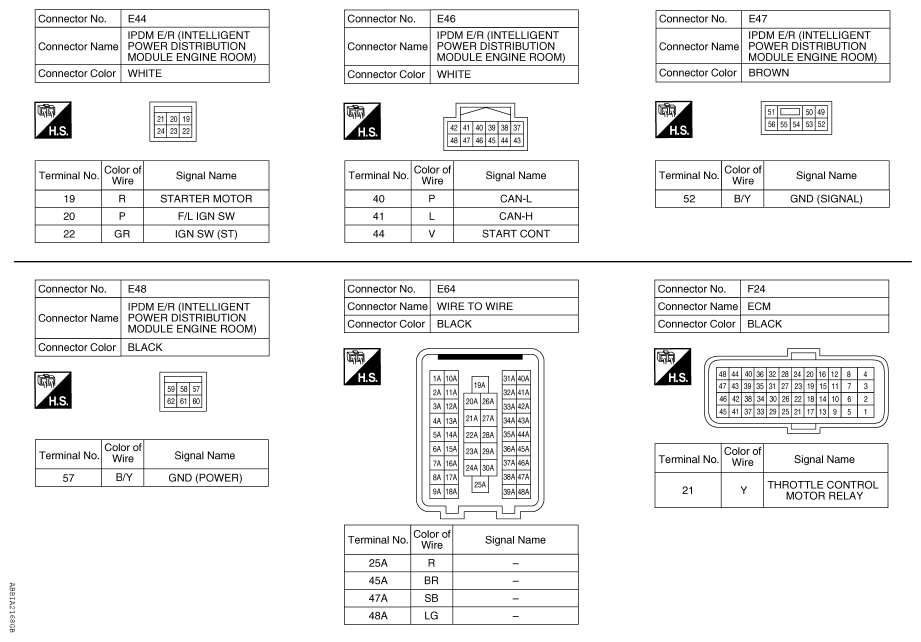

Fig 1: Starting System Connector End Views - Without Intelligent Key (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

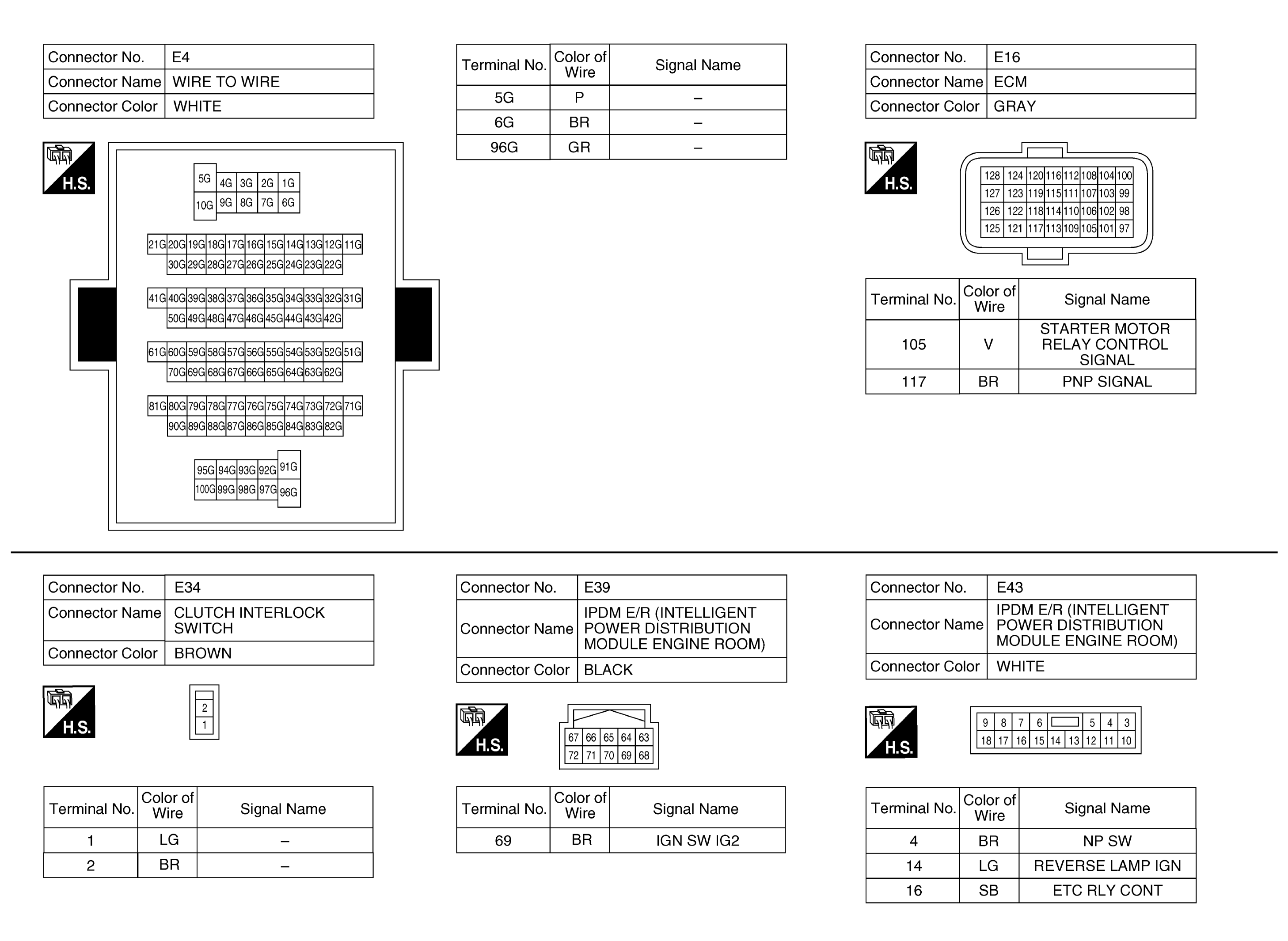

Fig 2: Starting System Connector End Views - Without Intelligent Key (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

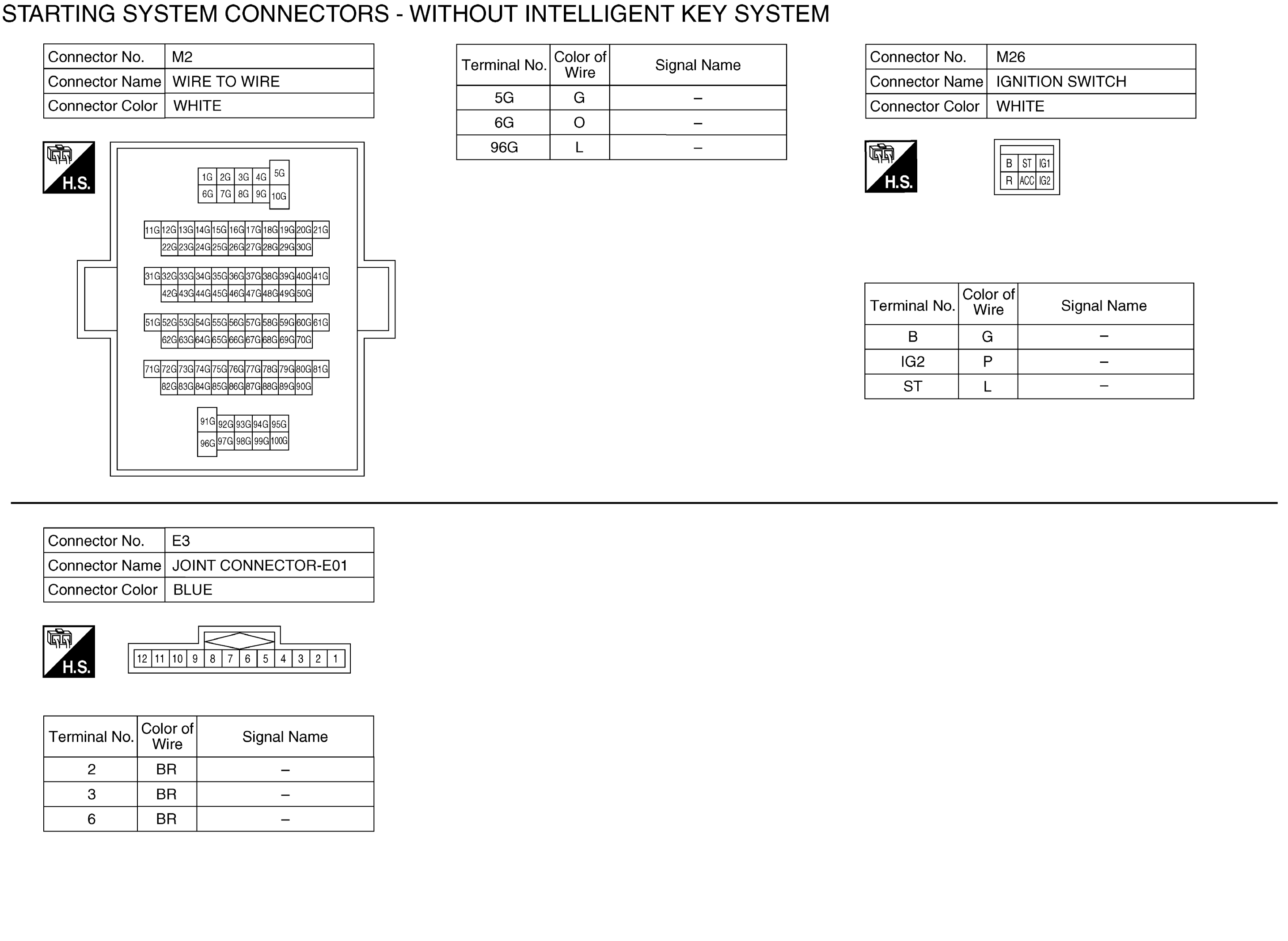

Fig 3: Starting System Connector End Views - Without Intelligent Key (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

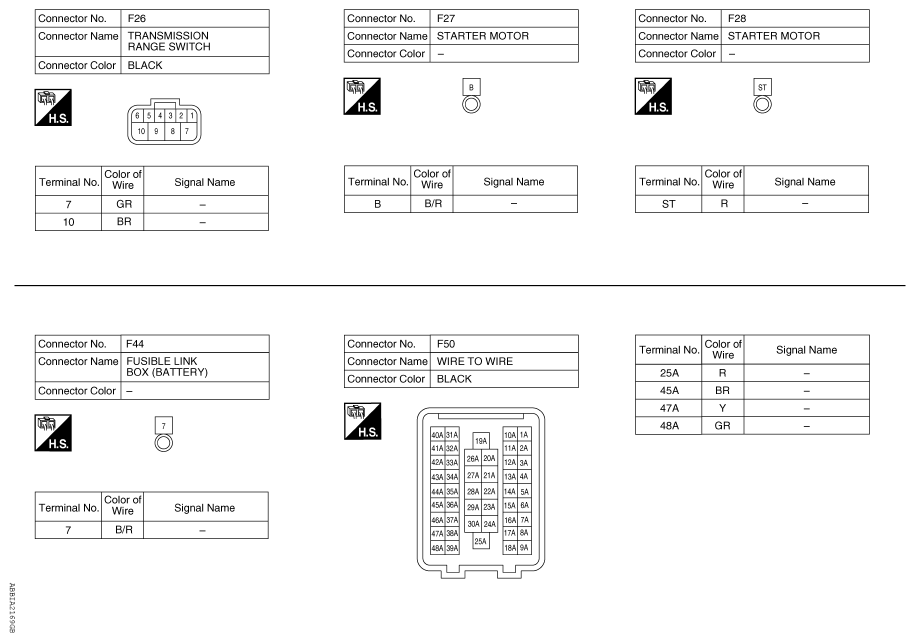

Fig 4: Starting System Connector End Views - Without Intelligent Key (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
