Quick Connector

Connect quick connector as follows:

1. Check the connection for damage or any foreign materials.
2. Align the connector with the tube, then insert the connector straight into the tube until a click sound is heard.
3. After connecting, check that the connection is secure by following method.
   • Visually confirm that the two tabs are connected to the connector.
   • Pull (A) the tube and the quick connector (1) to check they are securely connected.

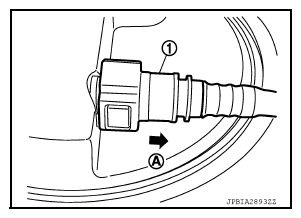

     Fig 1: Pulling Tube And Quick Connector

     Courtesy of NISSAN NORTH AMERICA, INC.
