Exploded View

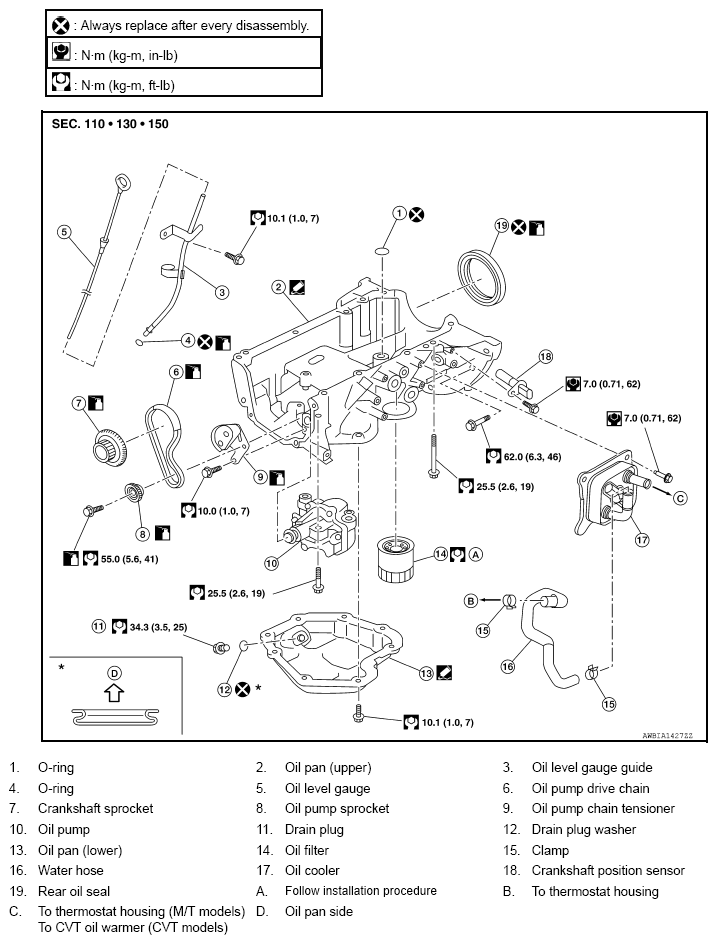

Fig 1: Exploded View Of Oil Pan With Torque Specifications

G09457965

Courtesy of NISSAN NORTH AMERICA, INC.
