EXCEPT 6M/T: Exploded View

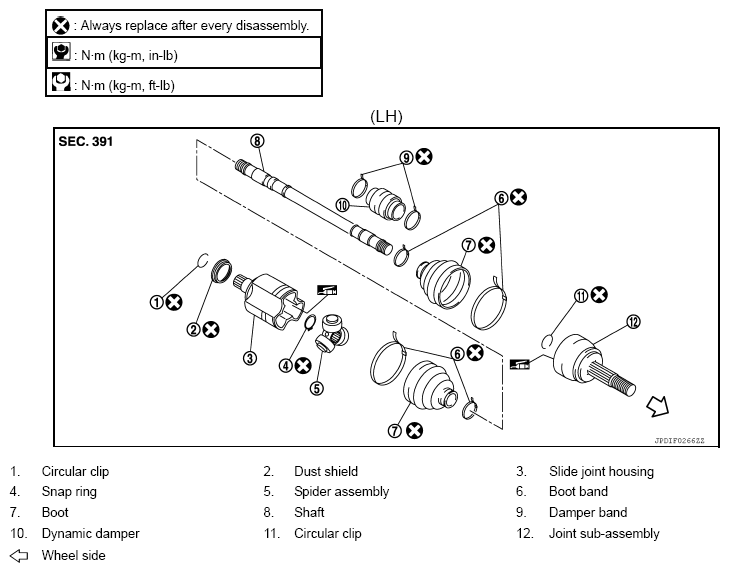

Fig 1: Exploded View Of Front Drive Shaft Except 6M/T (LH)
G09459036Courtesy of NISSAN NORTH AMERICA, INC.

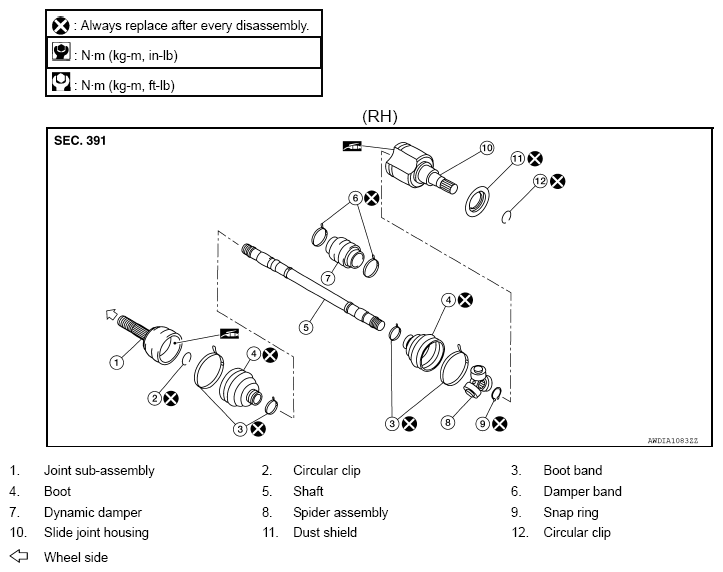

Fig 2: Exploded View Of Front Drive Shaft Except 6M/T (RH)
G09459037Courtesy of NISSAN NORTH AMERICA, INC.
