Removal and Installation: Installation
Installation is in the reverse order of removal.
- When replacing with a new ABS actuator and electric unit (control unit), do not remove the protector of the brake tube mounting hole until right before the brake tube is installed.
- When installing brake tube, tighten to the specified torque using a flare nut torque wrench so that flare nut and brake tube are not damaged. Refer to "FRONT: EXPLODED VIEW ".
- Do not remove and install ABS actuator and electric unit (control unit) by holding actuator harness.
- Bleed air from brake piping after installation. Refer to "BLEEDING BRAKE SYSTEM ".
- Do not apply excessive impact to actuator, such as by dropping it.

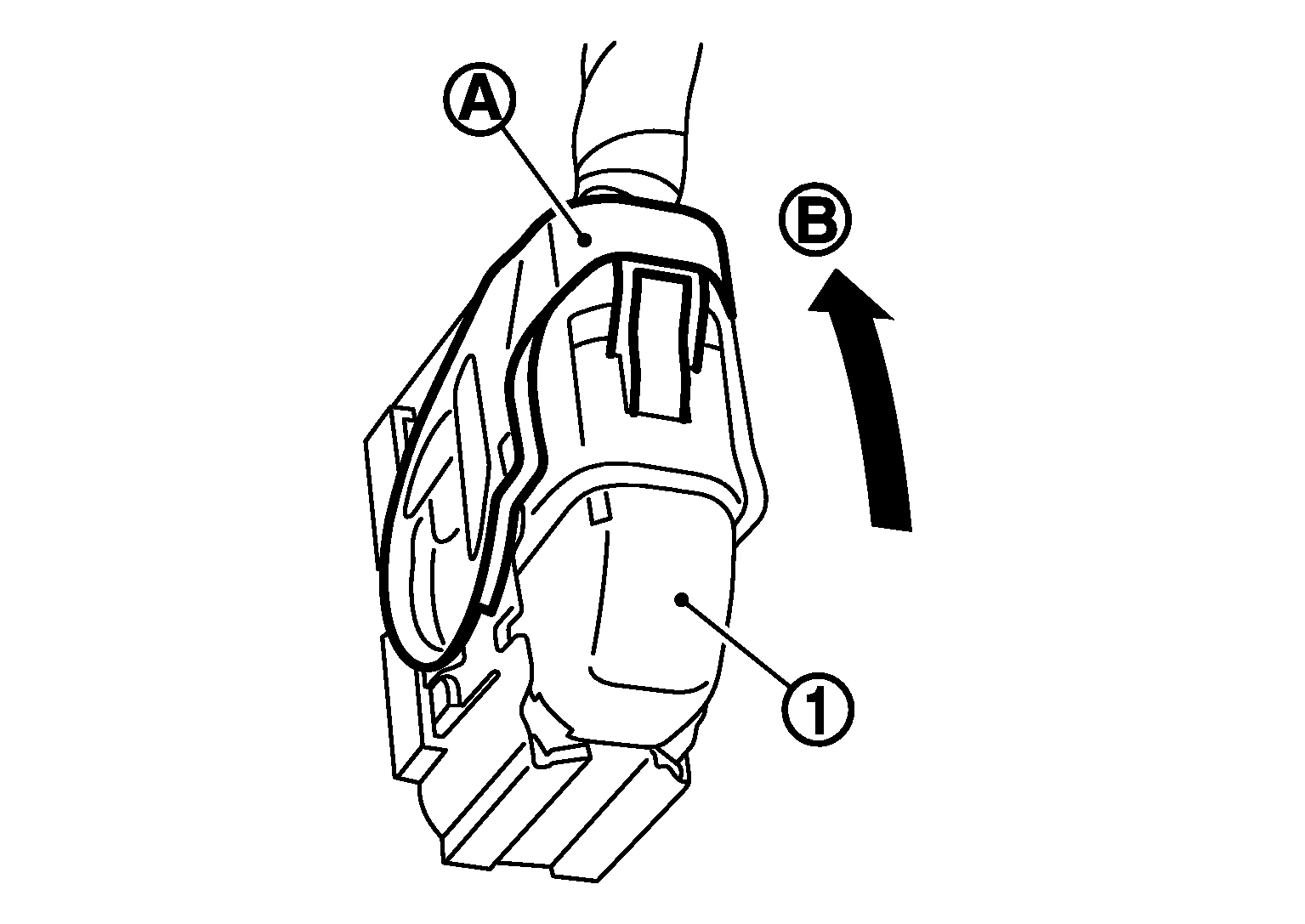

- After installing the ABS actuator and electric unit (control unit) harness connector (1), move the lever (A) in the direction (B) to secure the locking.
