Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission (CVT)
>>
System Description
>>
System
>>
CVT Control System
>>

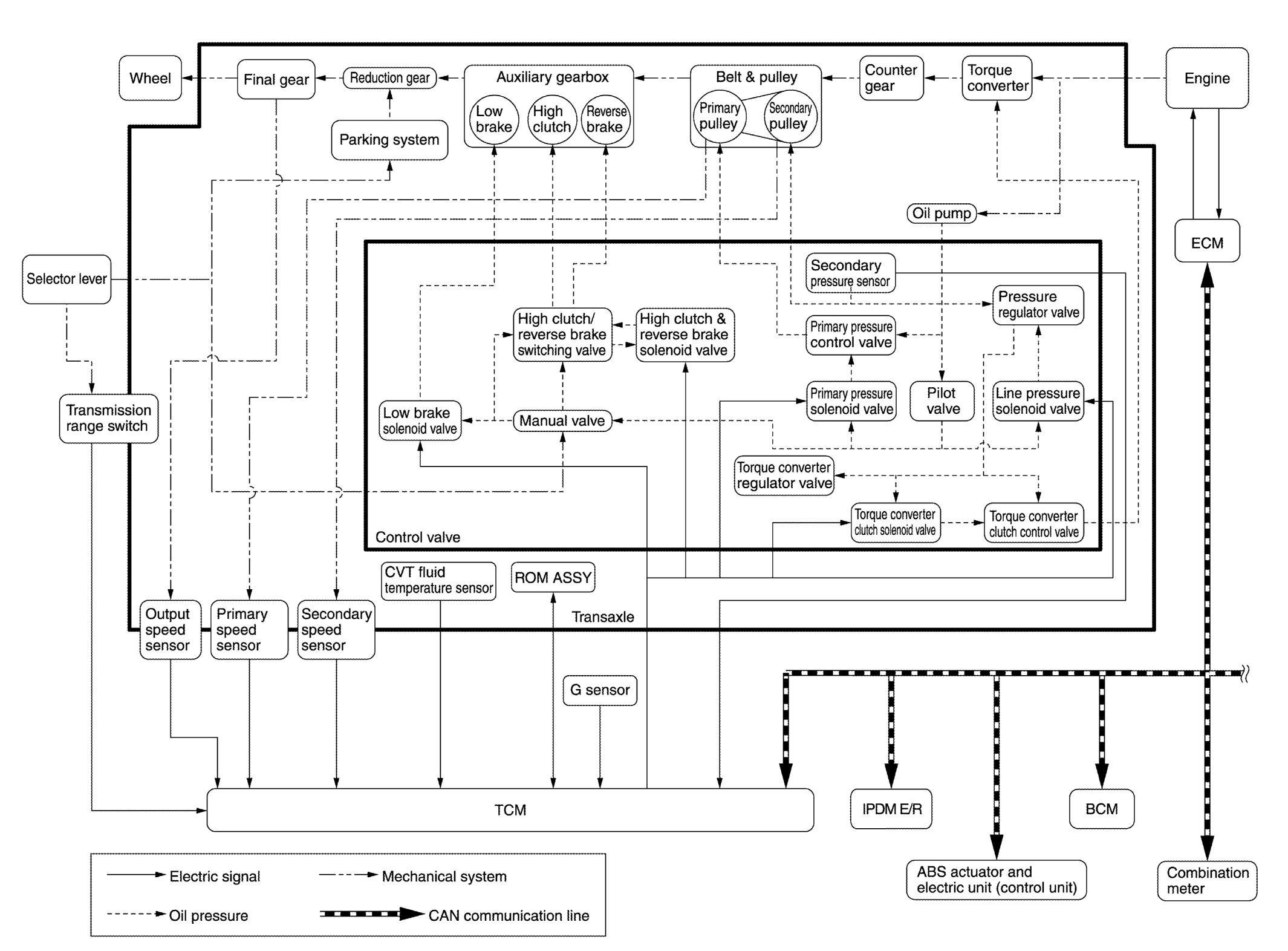

CVT CONTROL SYSTEM: System Diagram
CVT CONTROL SYSTEM: System Diagram
Fig 1: CVT Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
