Nissan-Datsun
>>
2014
>>
Sentra SL
>>
Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Seat Belts
>>
Removal And Installation
>>
Latch System For Children
>>
Exploded View
Exploded View

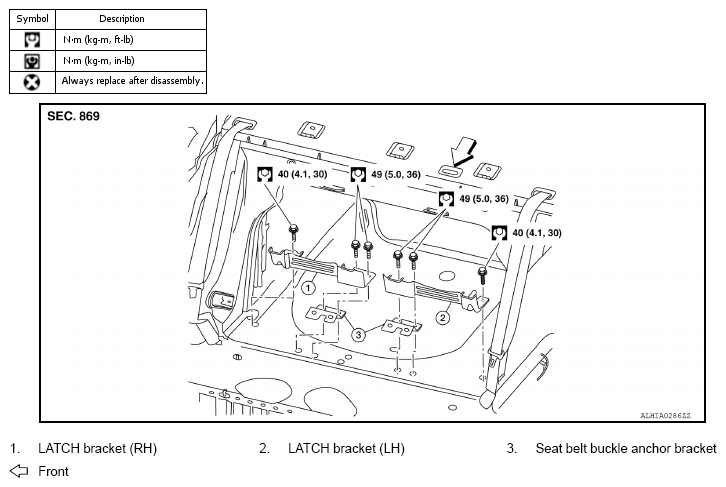

Fig 1: Exploded View Of Latch System For Children With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
