Front Seat Belt
>>
Exploded View
Exploded View

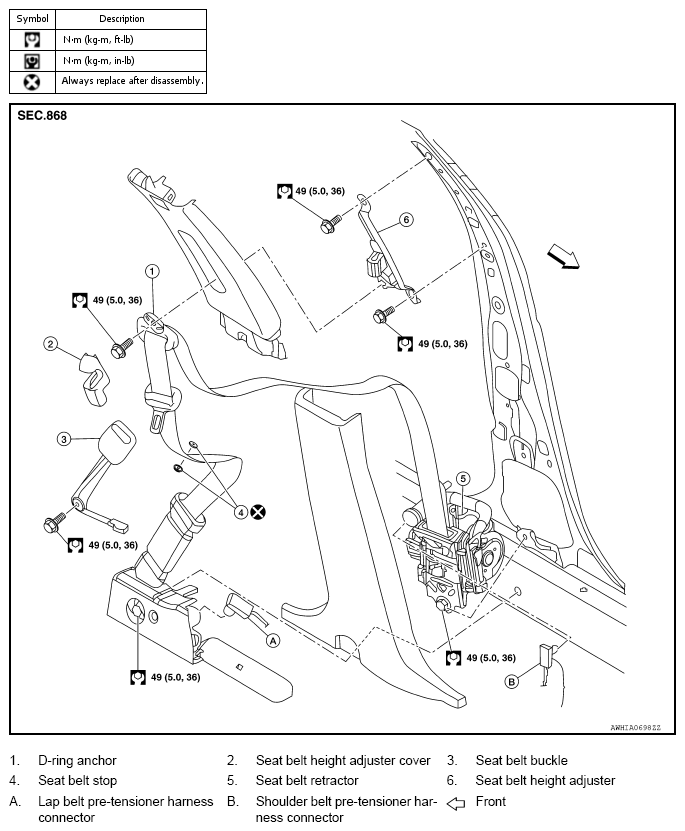

Fig 1: Exploded View Of Front Seat Belt With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
LH side shown above; RH side similar.
Courtesy of NISSAN NORTH AMERICA, INC.
