Section 1 (Clutch)
>>
Removal And Installation
>>
CSC (Concentric Slave Cylinder)
>>
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.

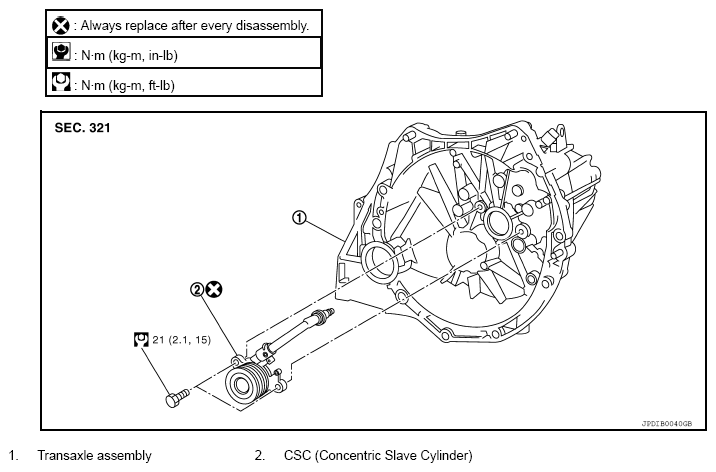

Fig 1: Exploded View Of Concentric Slave Cylinder With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
