Engine Cooling System Schematic

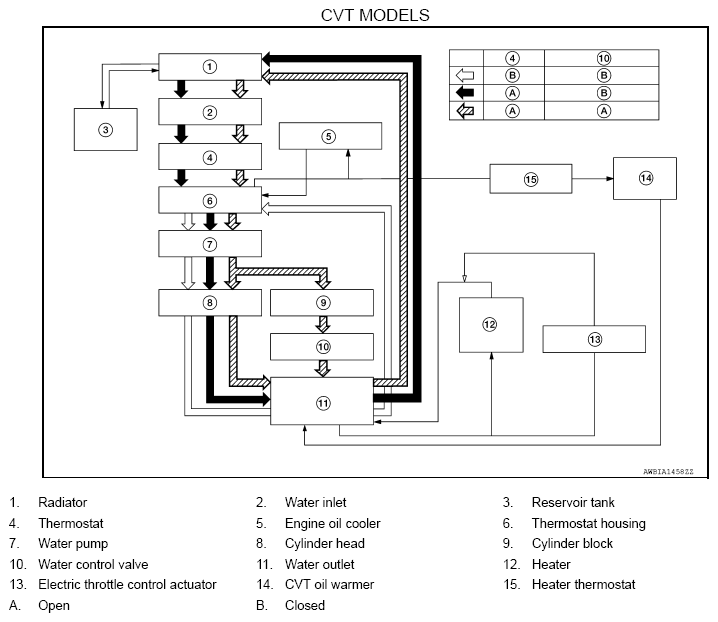

Fig 1: Engine Cooling System Schematic (CVT Models)
G09458209Courtesy of NISSAN NORTH AMERICA, INC.

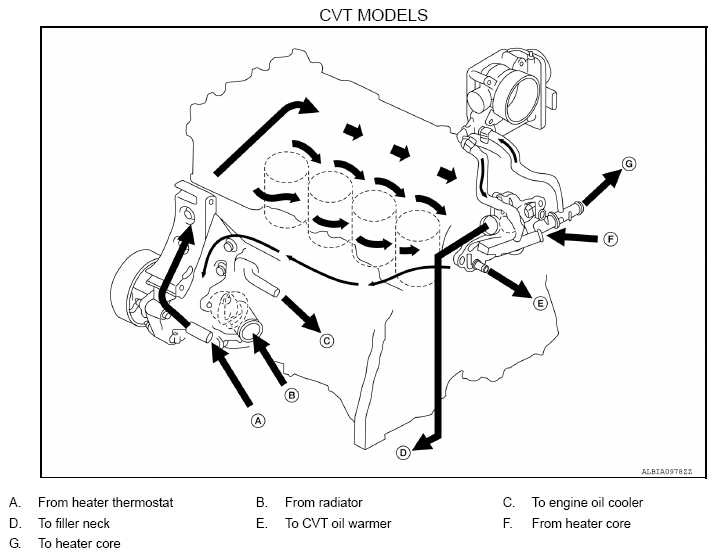

Fig 2: Engine Cooling Operation Diagram (CVT Models)
G09458210Courtesy of NISSAN NORTH AMERICA, INC.

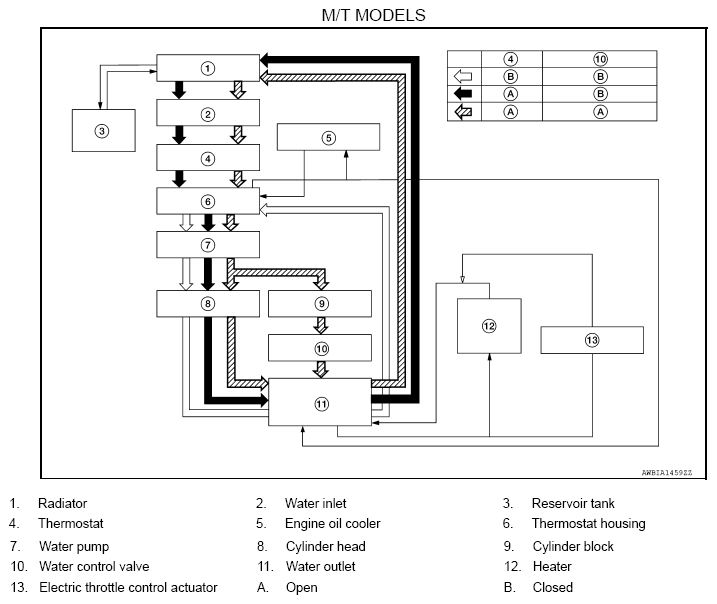

Fig 3: Engine Cooling System Schematic (M/T Models)
G09458211Courtesy of NISSAN NORTH AMERICA, INC.

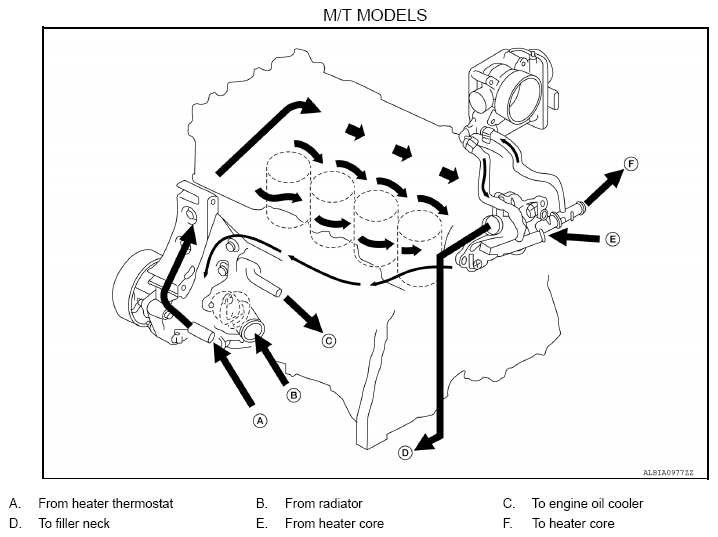

Fig 4: Engine Cooling System Operation Diagram (M/T Models)
G09458212Courtesy of NISSAN NORTH AMERICA, INC.
