Nissan-Datsun
>>
2014
>>
Sentra SL
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Instrument Panel
>>
Removal And Installation
>>
Instrument Panel Assembly
>>
Exploded View
Exploded View

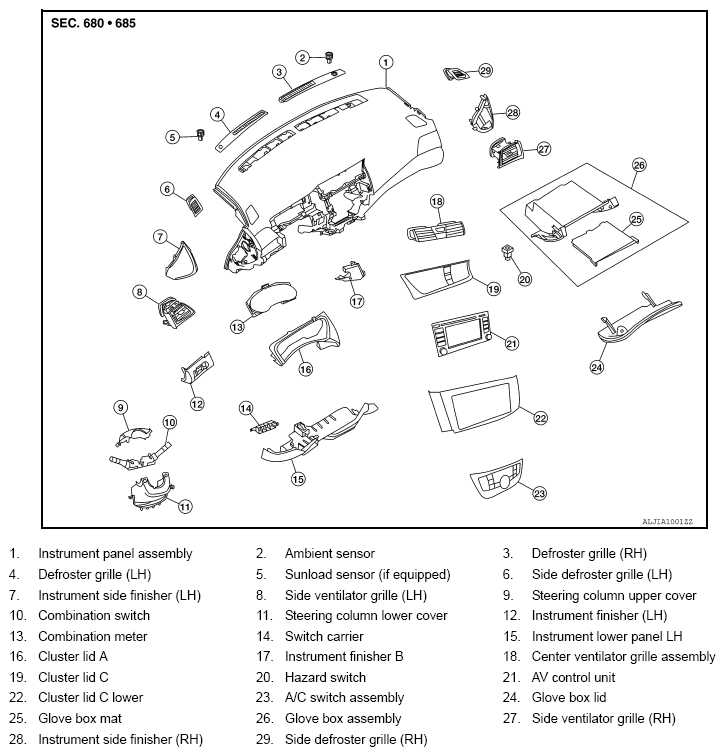

Fig 1: Exploded View Of Instrument Panel Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
