Nissan-Datsun
>>
2014
>>
Sentra SL
>>
Repair and Diagnosis
>>
Brakes
>>
Parking Brake System
>>
Removal And Installation
>>
Parking Brake Control
>>
Exploded View
Exploded View

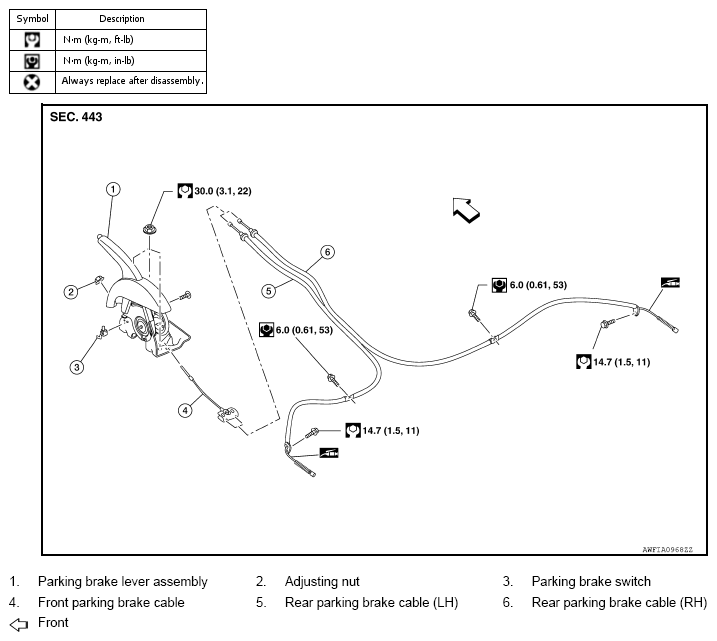

Fig 1: Exploded View Of Parking Brake Control With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
