Home
>>
Nissan-Datsun
>>
2014
>>
Sentra SL
>>
Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Removal And Installation
>>
Rear Seat
>>
Exploded View
Exploded View

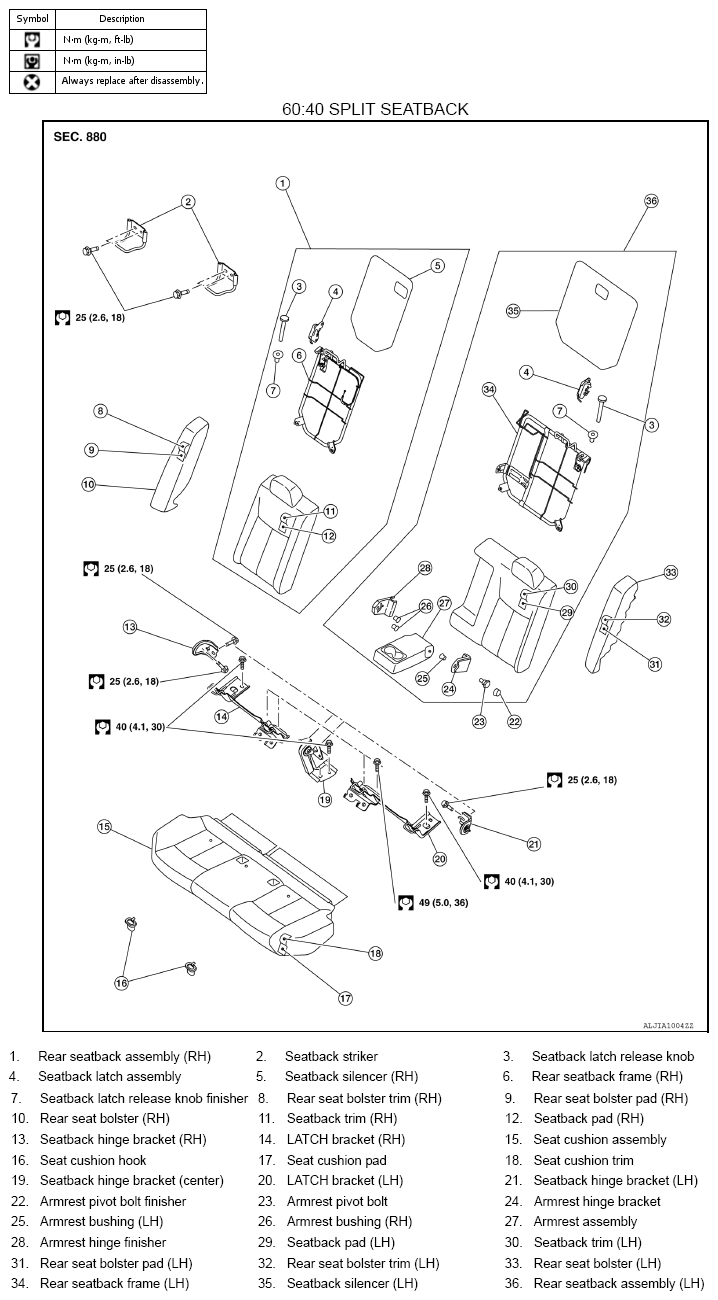

Fig 1: Exploded View Of Rear Seat (Split Seatback) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
