Nissan-Datsun
>>
2014
>>
Sentra SL
>>
Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Removal And Installation
>>
Front Seat
>>
Driver Side
>>
DRIVER SIDE: Exploded View
DRIVER SIDE: Exploded View

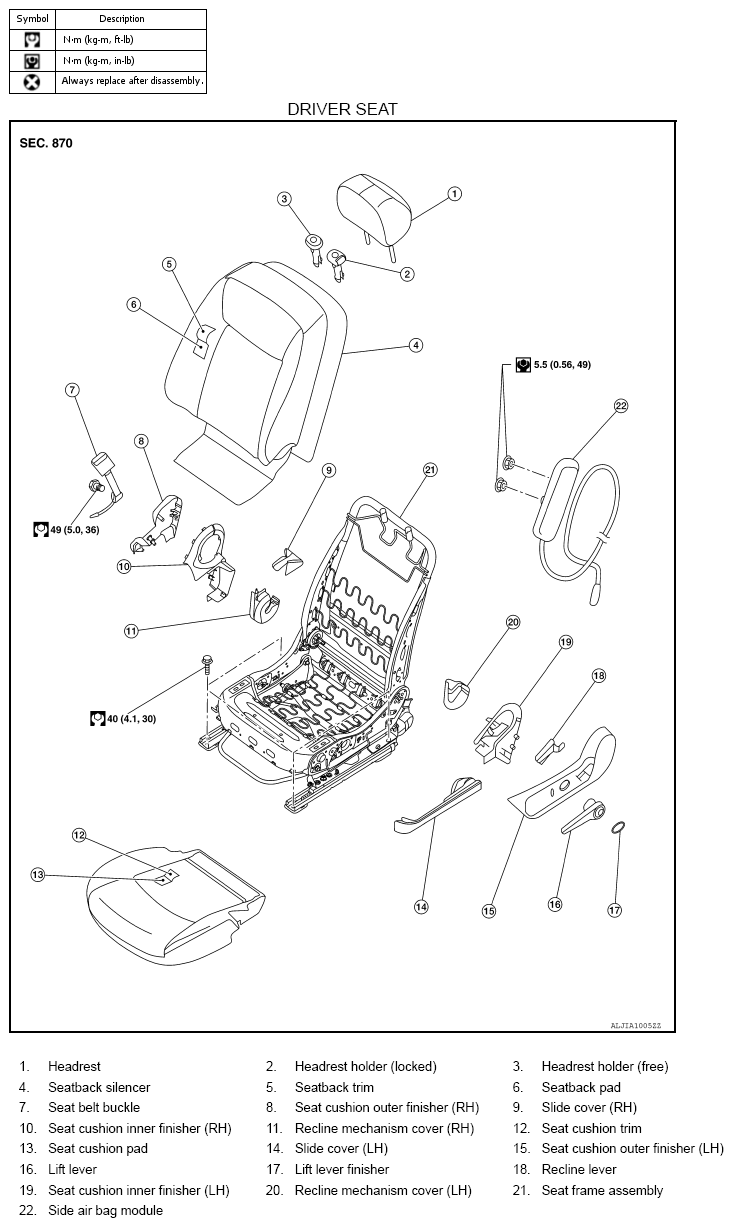

Fig 1: Exploded View Of Front Seat (Driver Seat) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
