Home >> Nissan-Datsun >> 2014 >> Sentra SL >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Removal And Installation >> Headlining >> Exploded View >> Sunroof

Exploded View: Sunroof

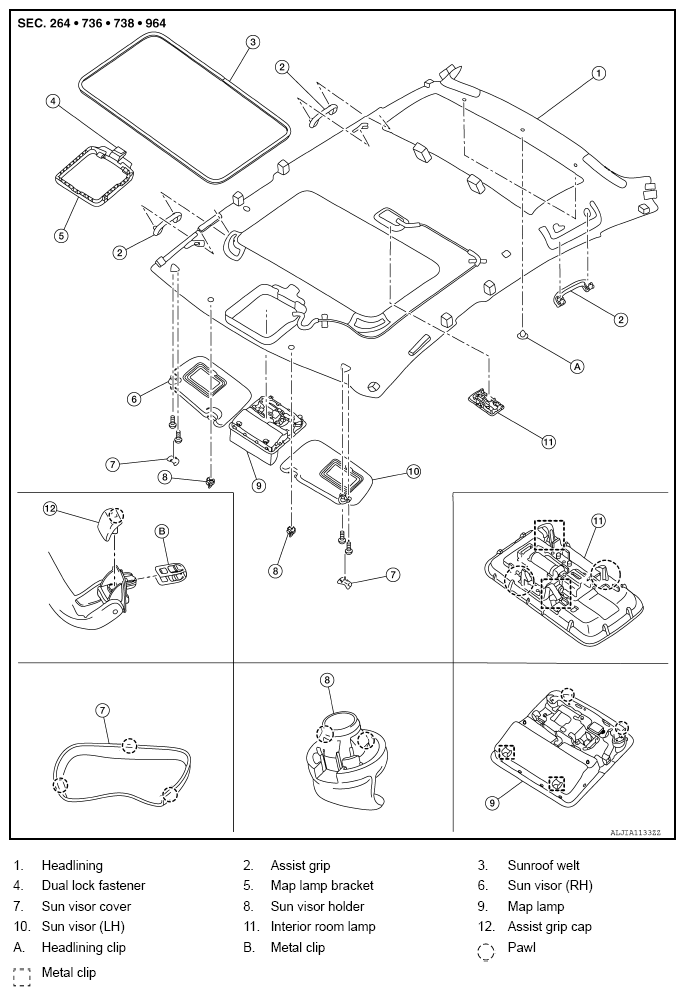

Fig 1: Exploded View Of Headlining (Sunroof)

G09459697

Courtesy of NISSAN NORTH AMERICA, INC.
