Nissan-Datsun
>>
2014
>>
Sentra S, Standard Trans
>>
Repair and Diagnosis
>>
Transmission
>>
Manual Transmission
>>
Unit Disassembly And Assembly
>>
Transaxle Assembly
>>
Exploded View
>>
Case And Housing
Case And Housing

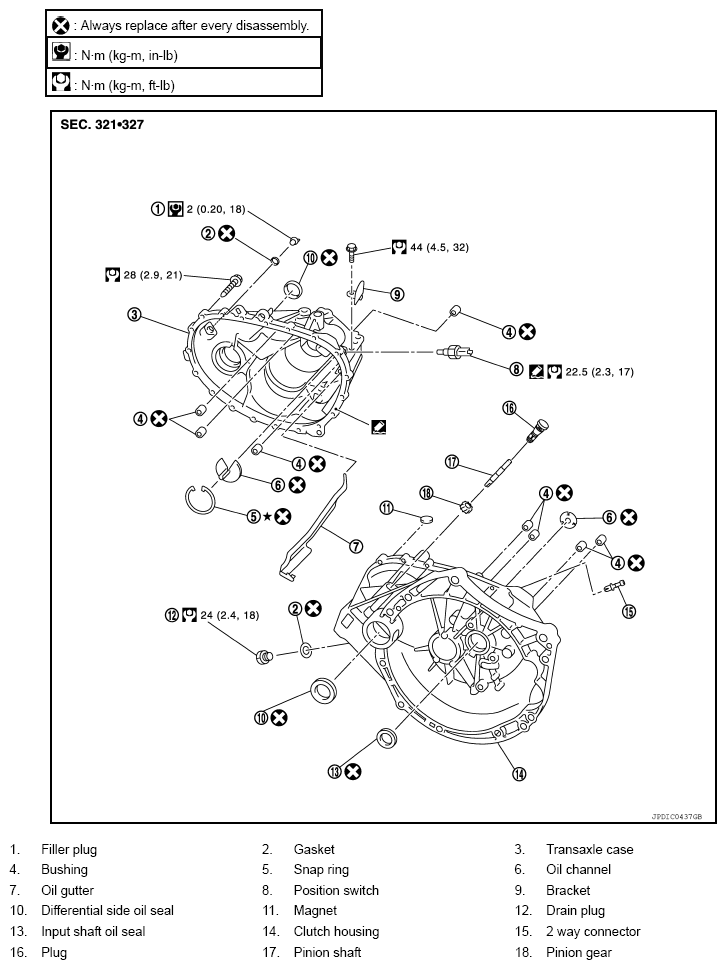

Fig 1: Exploded View Of Case And Housing With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
