Nissan-Datsun
>>
2014
>>
Sentra S, Standard Trans
>>
Repair and Diagnosis
>>
Transmission
>>
Manual Transmission
>>
Unit Disassembly And Assembly
>>
Input Shaft And Gear
>>
Exploded View
Exploded View

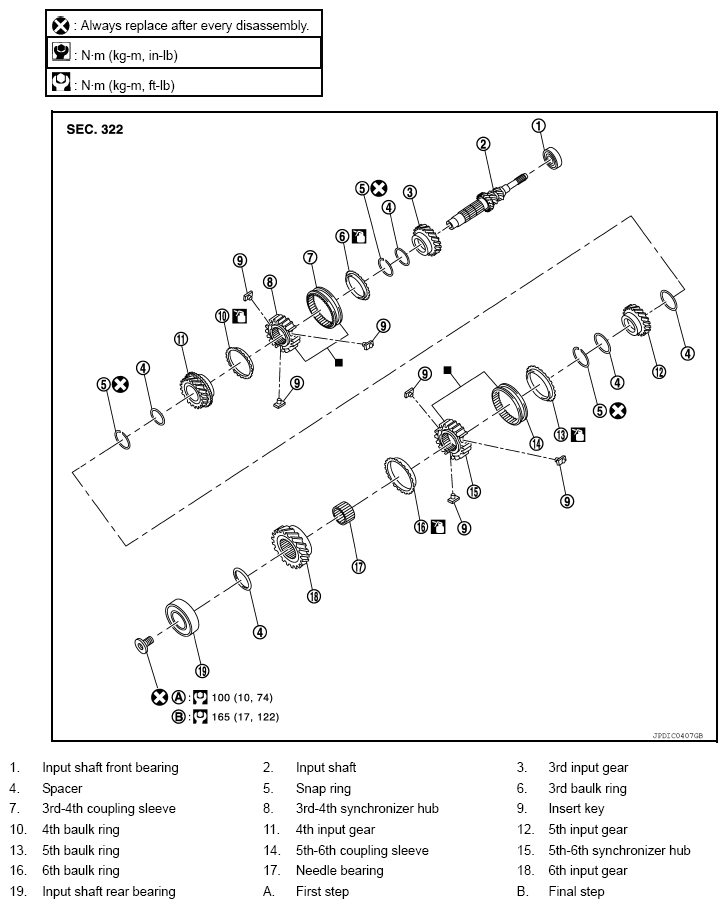

Fig 1: Exploded View Of Input Shaft And Gear With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
