Home
>>
Nissan-Datsun
>>
2014
>>
Sentra S, Standard Trans
>>
Repair and Diagnosis
>>
Transmission
>>
Manual Transmission
>>
Removal And Installation
>>
Control Linkage
>>
Exploded View
Exploded View

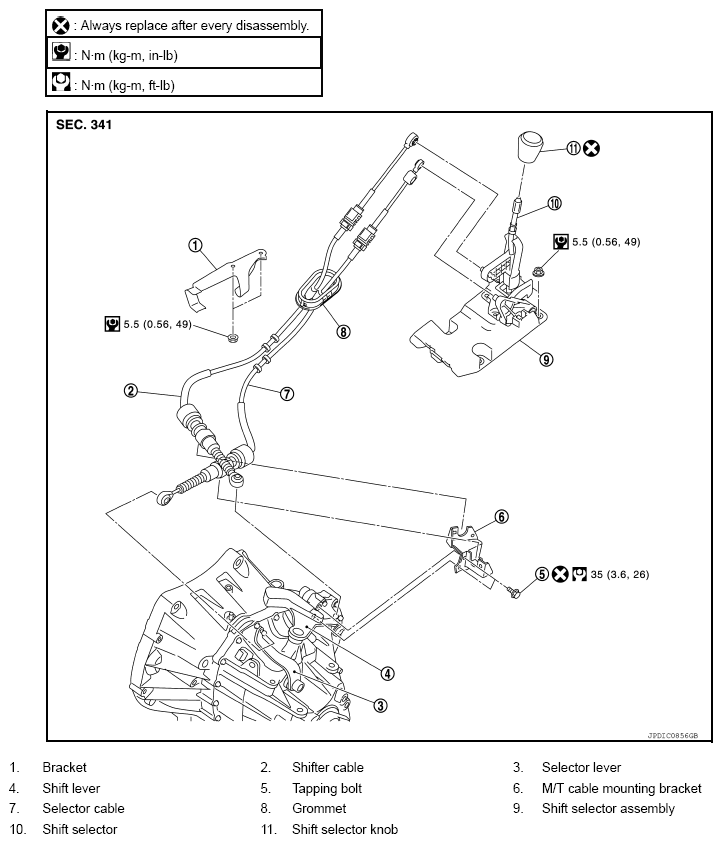

Fig 1: Exploded View Of Control Linkage With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
