Ignition Timing: Inspection

  1. CHECK IGNITION TIMING
    1. Attach timing light to the ignition coil No. 1 harness.
    2. Check ignition timing.

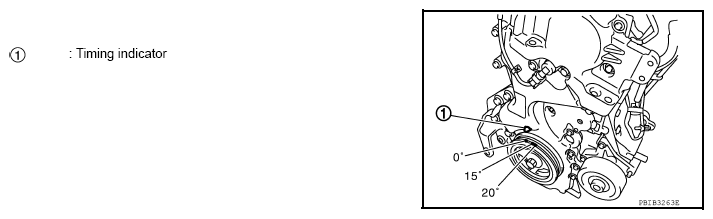

      Fig 1: Identifying Timing Indicator Mark
      G09458482Courtesy of NISSAN NORTH AMERICA, INC.

      Specification:  "IGNITION TIMING "

      : INSPECTION END
