Side Window Glass: Components

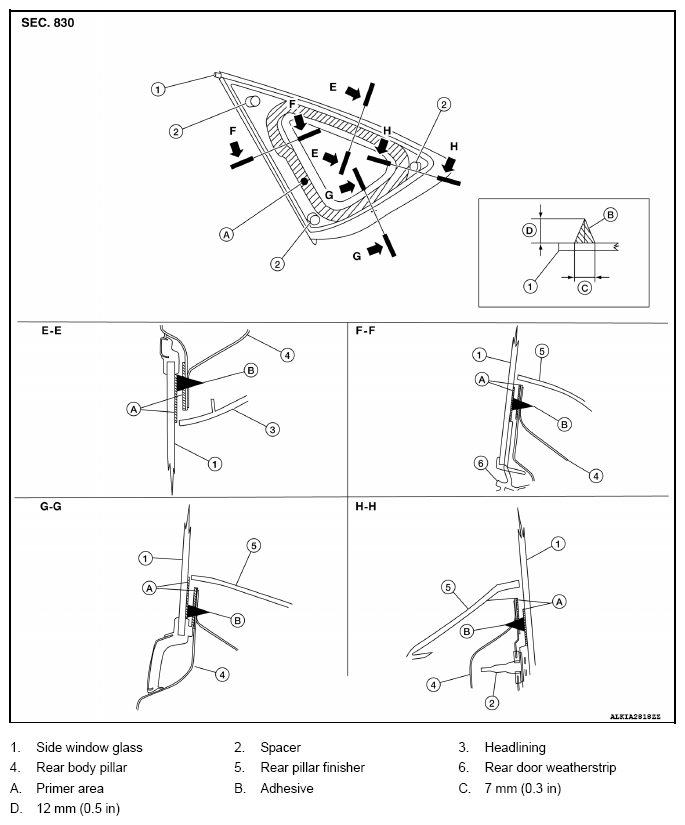

Fig 1: Identifying Side Window Glass Clearance Sections

G09460249

Courtesy of NISSAN NORTH AMERICA, INC.
