CVT Shift Lock System Connector End Views

Fig 1: CVT Shift Lock System Connector End View (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

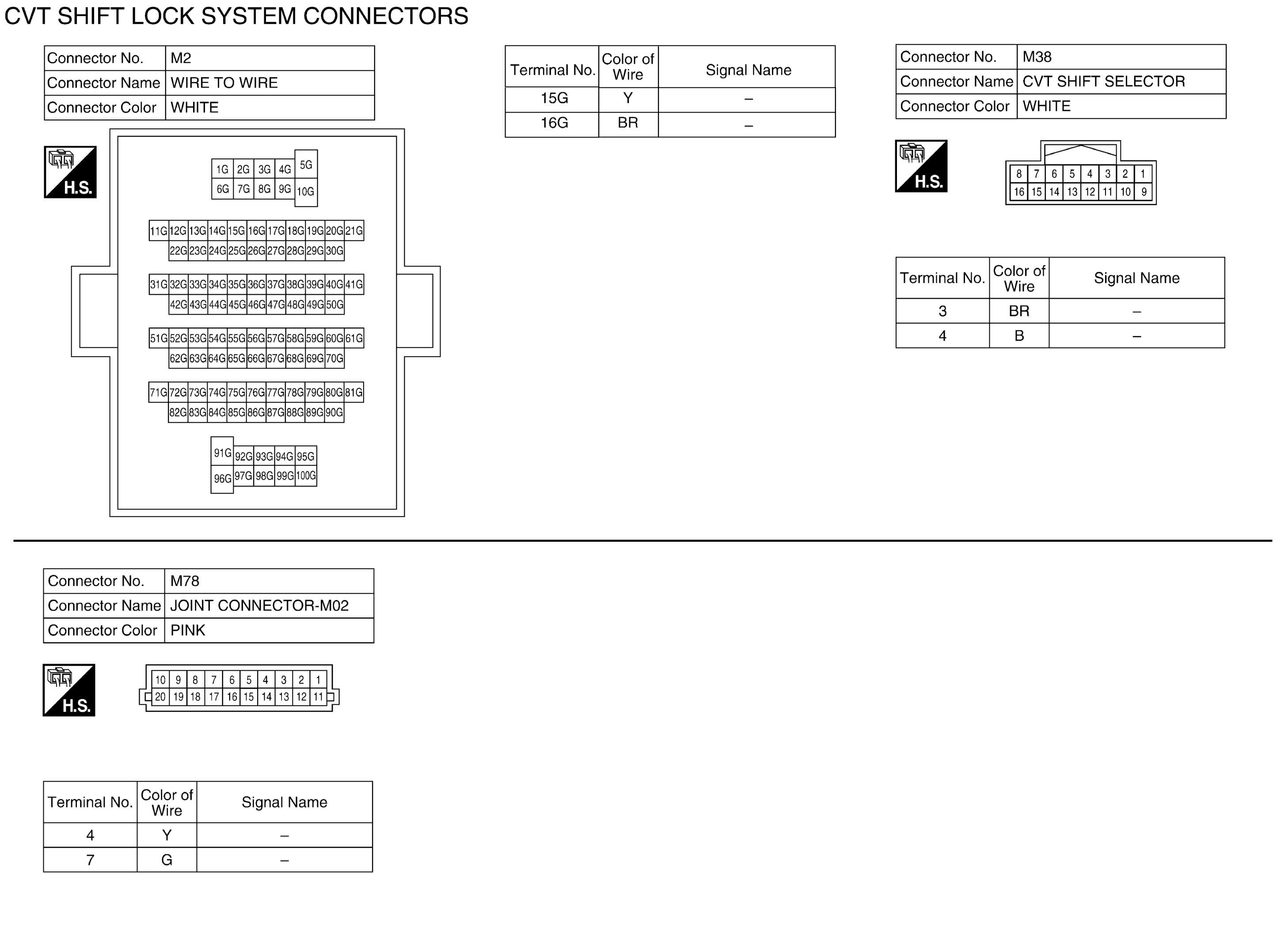

Fig 2: CVT Shift Lock System Connector End View (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
