Nissan-Datsun
>>
2014
>>
Sentra FE+SV
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission (CVT)
>>
Removal And Installation
>>
Water Hose
>>
Exploded View
Exploded View

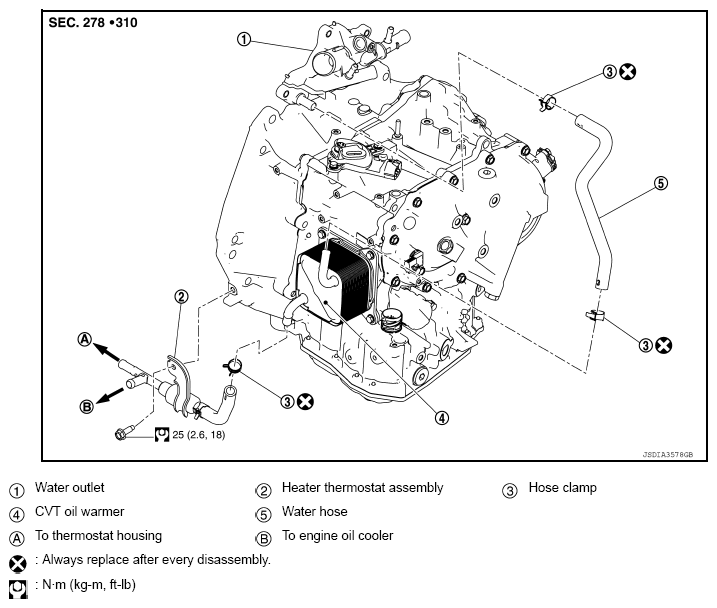

Fig 1: Exploded View Of Water Hose With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
