Removal and Installation: Removal

  1. Remove engine under cover. Refer to "EXPLODED VIEW ".
  2. Remove air cleaner and air duct. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove fender protector. Refer to "FENDER PROTECTOR: REMOVAL AND INSTALLATION - FRONT FENDER PROTECTOR ".
  4. Remove timing chain. Refer to "REMOVAL AND INSTALLATION ".
  5. Remove oil pump.
    • Loosen bolts in reverse order as shown below.

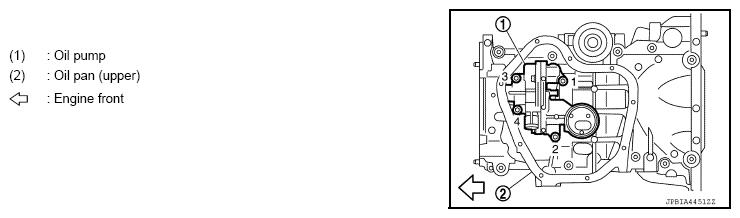

      Fig 1: Identifying Oil Pan (Upper) And Oil Pump
      G09458196Courtesy of NISSAN NORTH AMERICA, INC.
