Component Parts Location

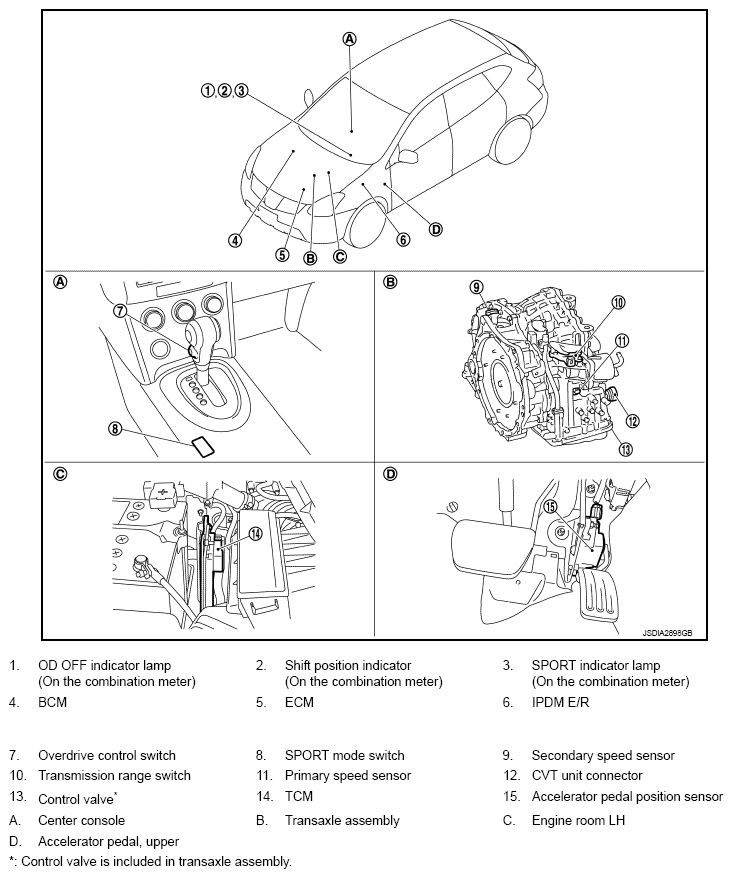

Fig 1: Control System Components Parts Location

G09611301

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: The following components are included in control valve.

CVT fluid temperature sensor
Torque converter clutch solenoid valve
Line pressure solenoid valve
Step motor
ROM assembly
Secondary pressure sensor
Secondary pressure solenoid valve
Lock-up select solenoid valve
