Home
>>
Nissan-Datsun
>>
2014
>>
Rogue Select FWD
>>
Repair and Diagnosis
>>
Suspension
>>
Wheel Alignment
>>
Front Suspension
>>
Unit Removal And Installation
>>
Front Suspension Member
>>
Exploded View
Exploded View

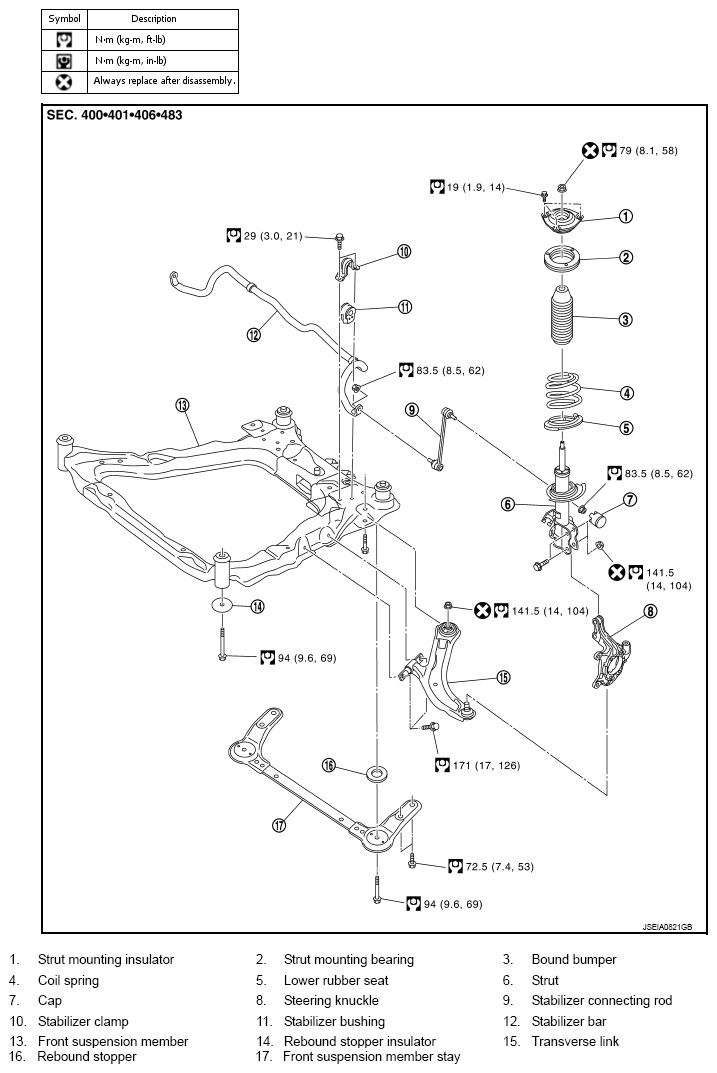

Fig 1: Exploded View Of Front Suspension Member
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
