System Diagram

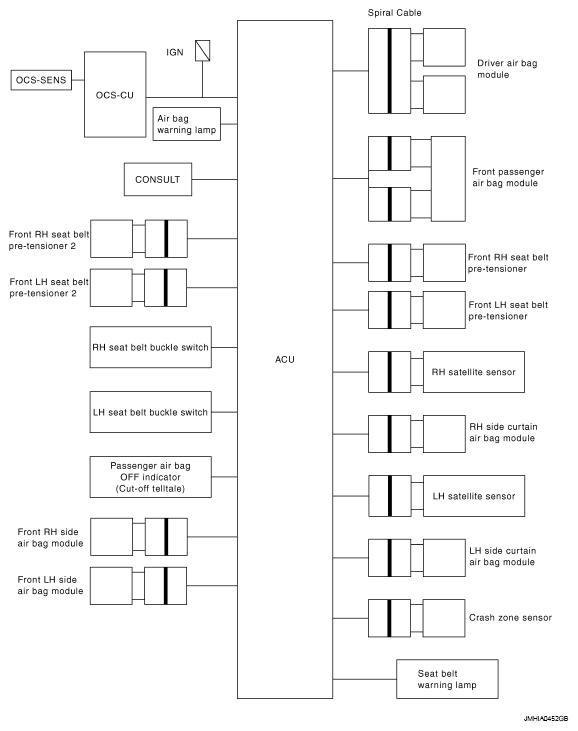

Fig 1: SRS Air Bag - System Diagram

G05370827

Courtesy of NISSAN NORTH AMERICA, INC.
