System Diagram: Notes

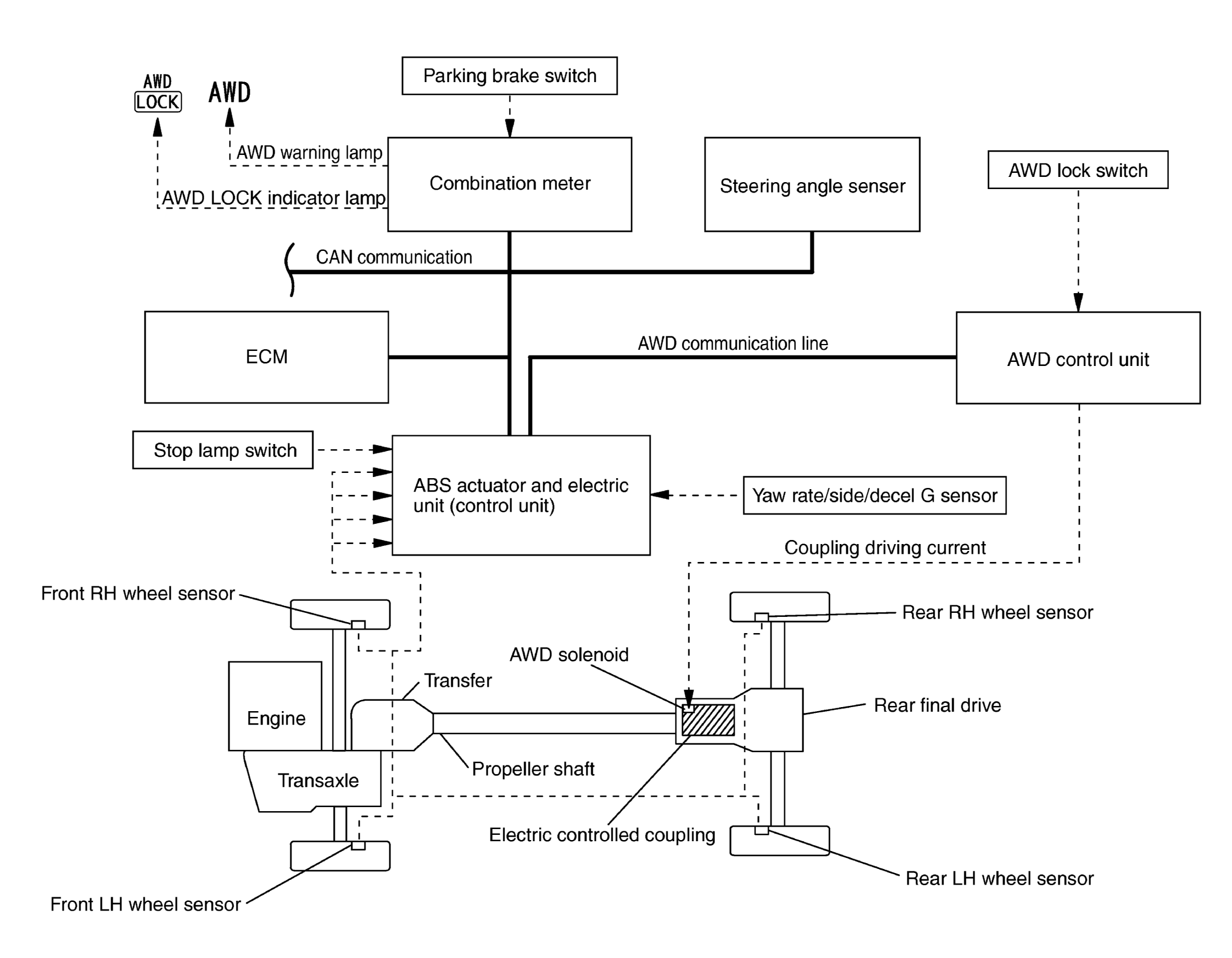

Fig 1: AWD - System Diagram

G05370131

Courtesy of NISSAN NORTH AMERICA, INC.
