Nissan-Datsun
>>
2014
>>
Rogue Select AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel System
>>
Removal And Installation
>>
EVAP Canister
>>
Exploded View
Exploded View

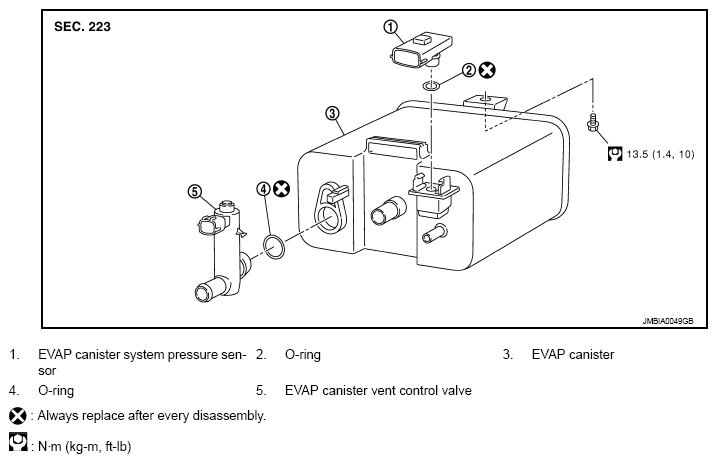

Fig 1: Exploded View Of EVAP Canister With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
