Oil Cooler
>>
Exploded View
Exploded View

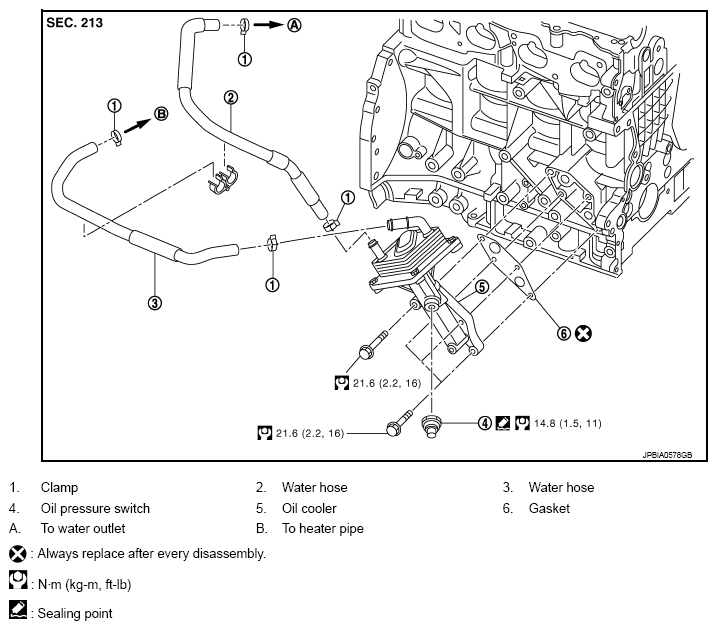

Fig 1: Exploded View Of Oil Cooler With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
