Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Window Control System
>>
Ecu Diagnosis Information
>>
BCM (Body Control Module)
>>
Reference Value
>>
Terminal Layout
Terminal Layout

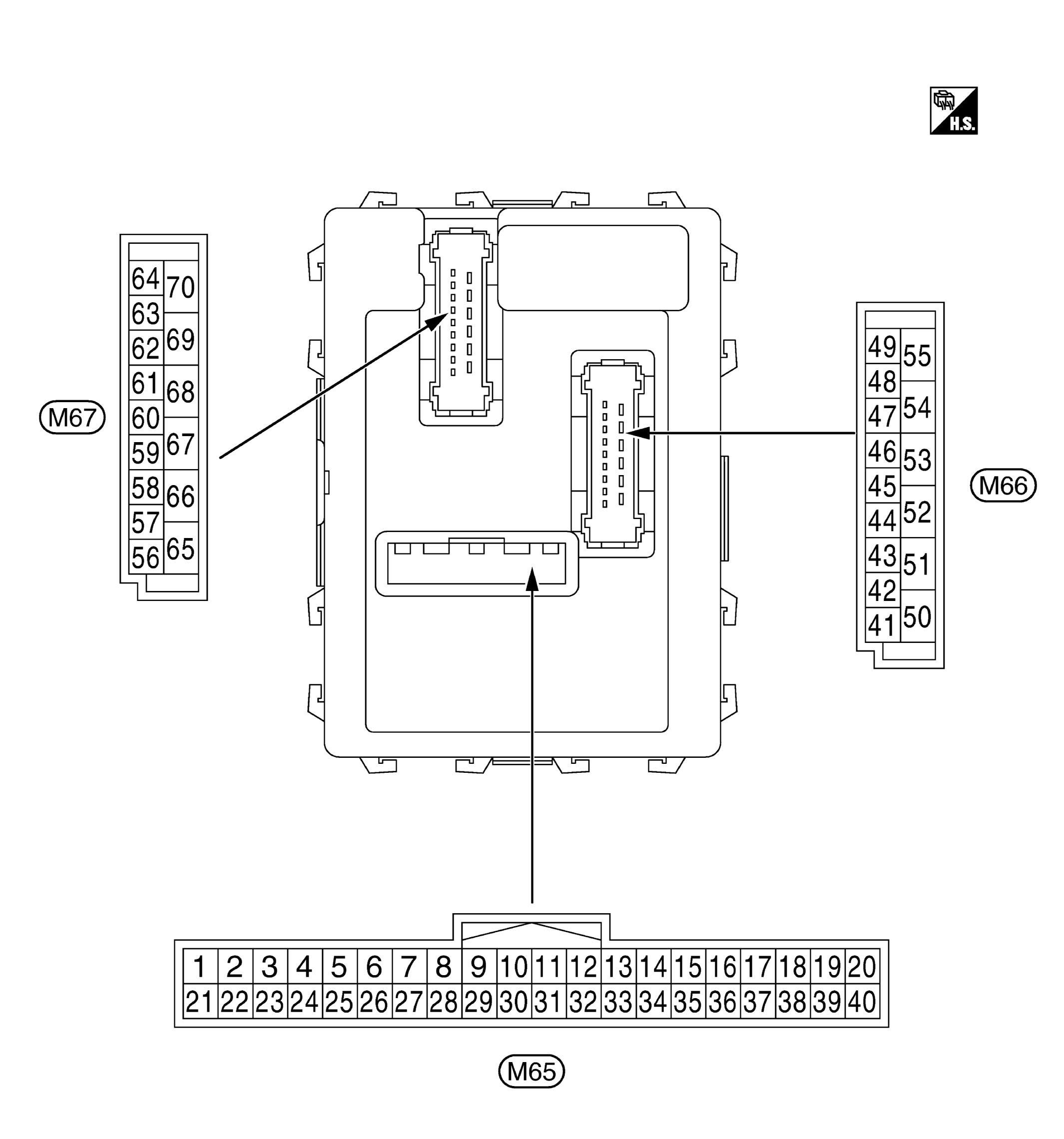

Fig 1: Body Control Module Terminal Layout
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
