Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Drive Mode System
>>
Wiring Diagram
>>
Sport Mode System
>>
Connector End Views
Connector End Views

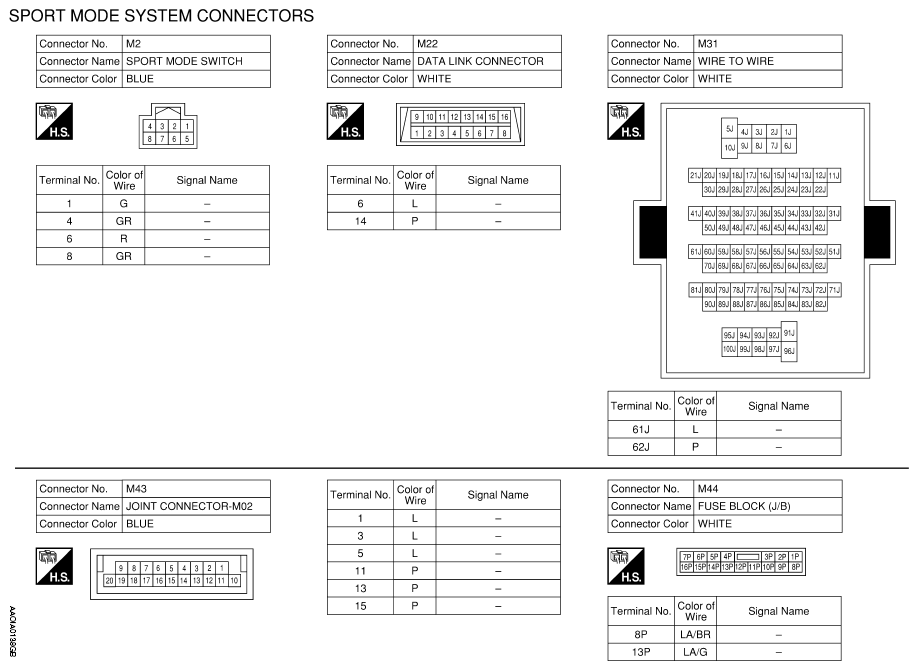

Fig 1: Sport Mode System Connector End Views (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

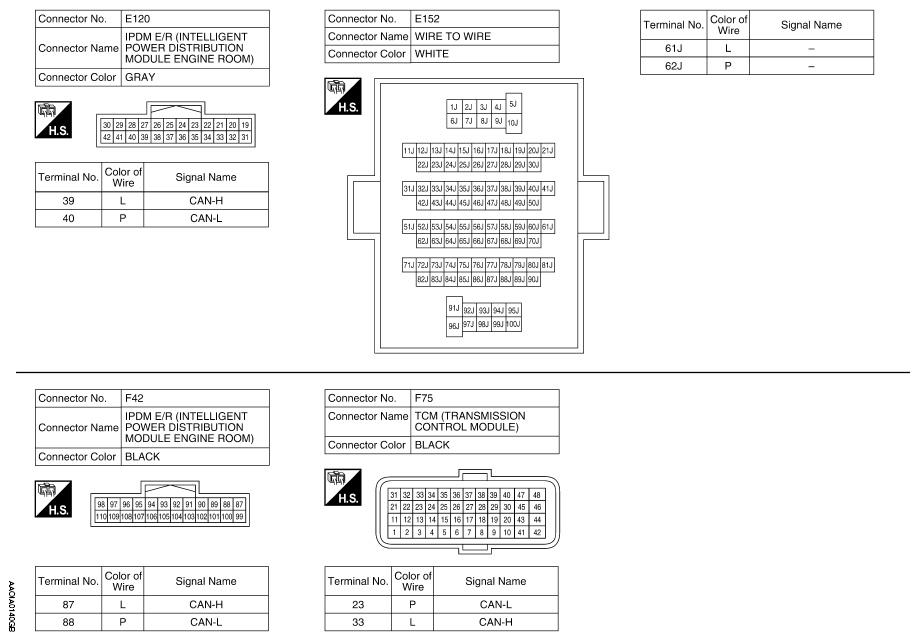

Fig 2: Sport Mode System Connector End Views (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

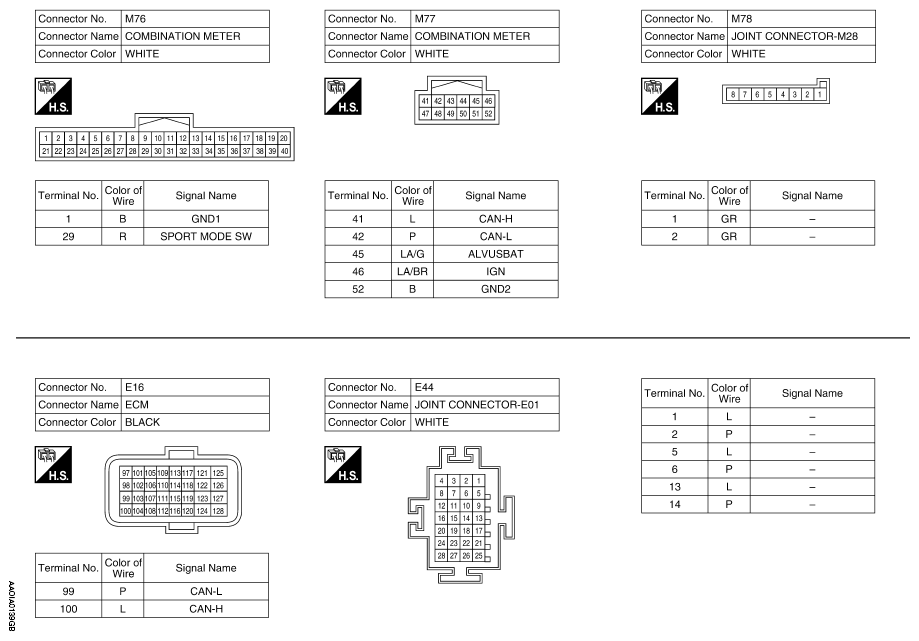

Fig 3: Sport Mode System Connector End Views (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
