Component Parts Location

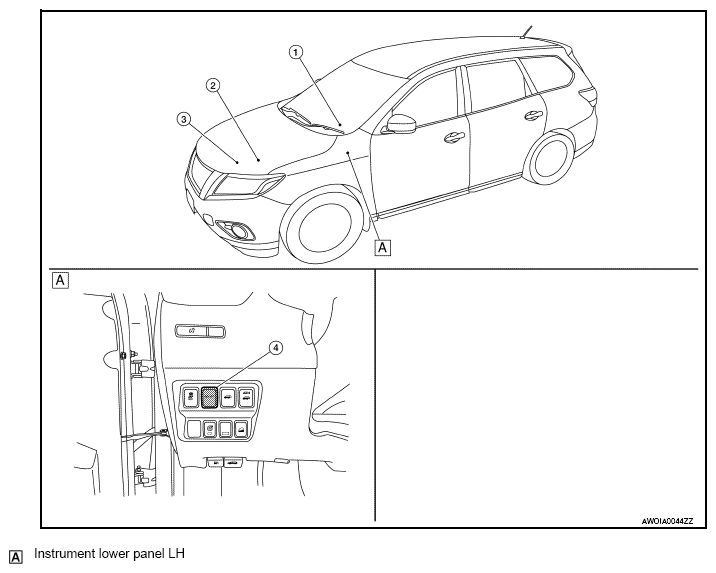

Fig 1: Drive Mode System Component Parts Location
G09157812Courtesy of NISSAN NORTH AMERICA, INC.
No. Component Function
(1) Combination meter
  • The combination meter transmittes the following signal via CAN communications to the TCM.
    • SPORT mode switch signal
  • The combination meter receives the following signal via CAN communications from the ECM.

  • SPORT mode indicator signal

Refer to "METER SYSTEM: COMPONENT PARTS LOCATION " for detailed installation location.
(2) TCM
  • The TCM receives the following signal via CAN communications from the combination meter.
    • SPORT mode switch signal
  • The TCM transmittes the following signal via CAN communications to the ECM.

  • SPORT mode signal

Refer to "CVT CONTROL SYSTEM: COMPONENT PARTS LOCATION " for detailed installation location.
(3) ECM
  • The ECM receives the following signal via CAN communications from the TCM.
    • SPORT mode signal
  • The ECM transmittes the following signal via CAN communications to the combination meter.

  • SPORT mode indicator signal

Refer to "COMPONENT PARTS LOCATION " for detailed installation location.
(4) SPORT mode switch Refer to "SPORT MODE SWITCH ".
