Oil Pump
>>
Exploded View
Exploded View

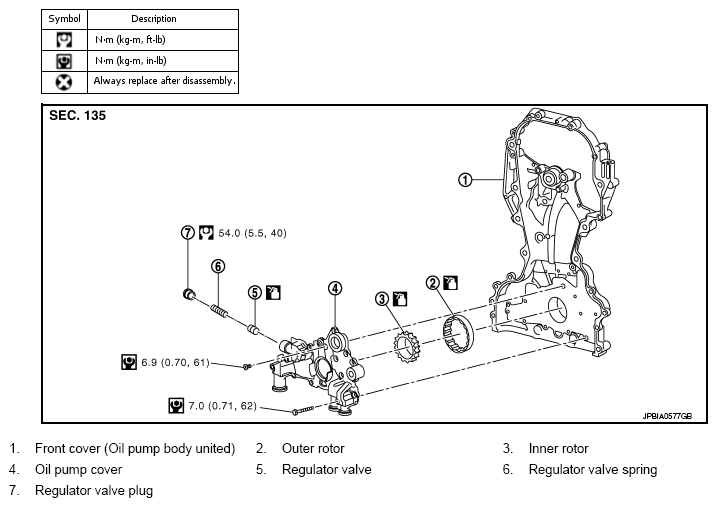

Fig 1: Exploded View Of Oil Pump With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
Before assembly, apply new engine oil to the parts as shown above.
Courtesy of NISSAN NORTH AMERICA, INC.
