IPDM E/R Relays

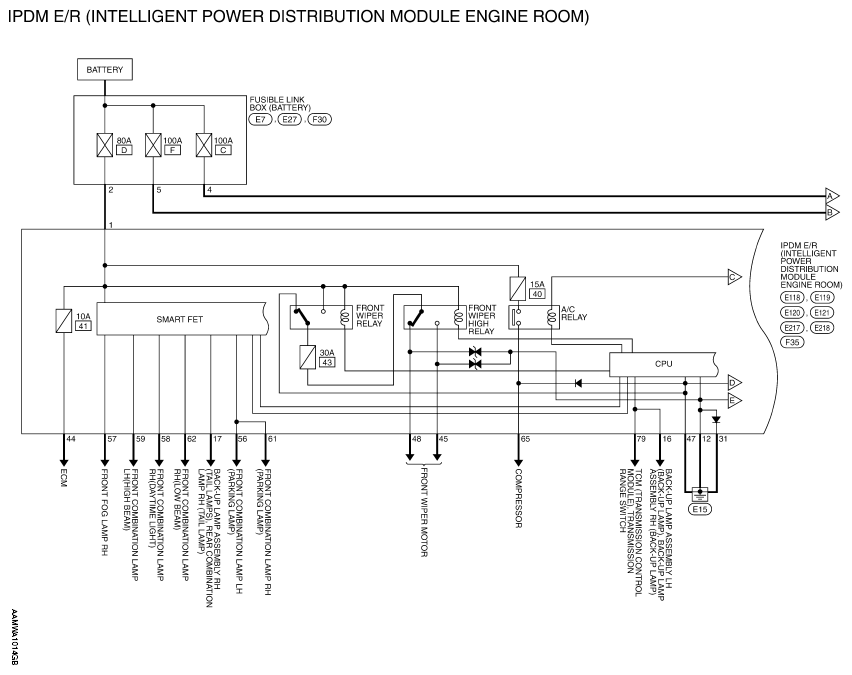

Fig 1: IPDM E/R Relays (1 Of 3)

G09157616

Courtesy of NISSAN NORTH AMERICA, INC.

IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
Front Wiper Relay
Front Wiper High Relay
A/C Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.

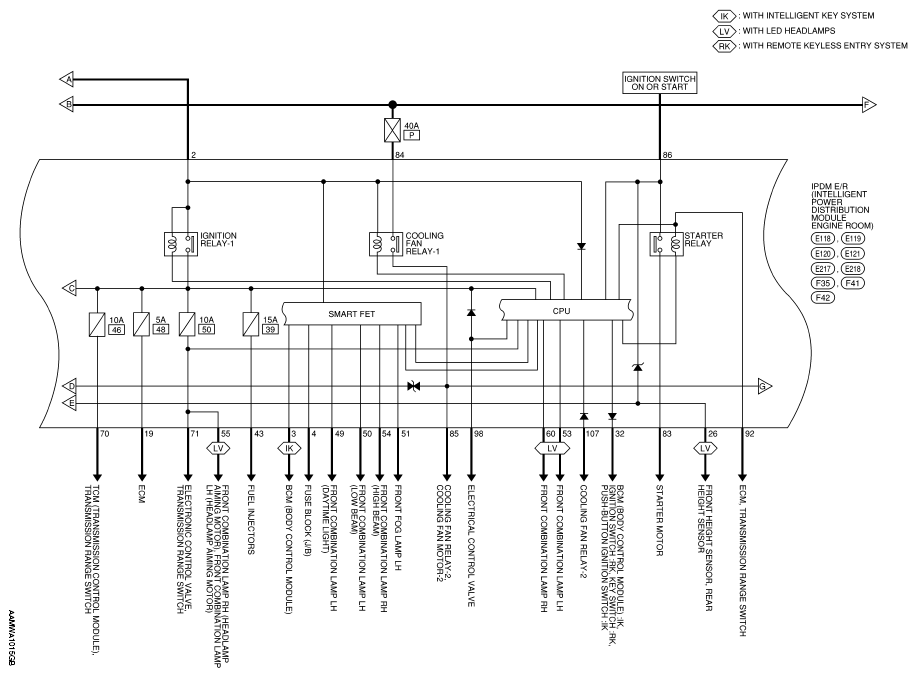

Fig 2: IPDM E/R Relays (2 Of 3)

G09157617

Courtesy of NISSAN NORTH AMERICA, INC.

IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
Ignition Relay - 1
Cooling Fan Relay - 1
Starter Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.

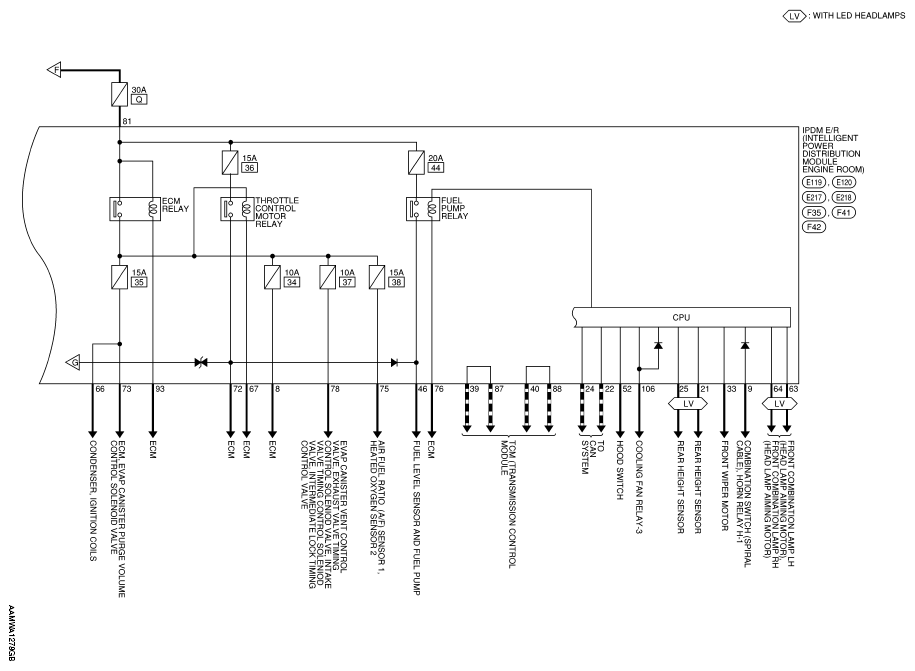

Fig 3: IPDM E/R Relays (3 Of 3)

G09157618

Courtesy of NISSAN NORTH AMERICA, INC.

IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
ECM Relay
Throttle Control Motor Relay
Fuel Pump Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.
