Connector End Views

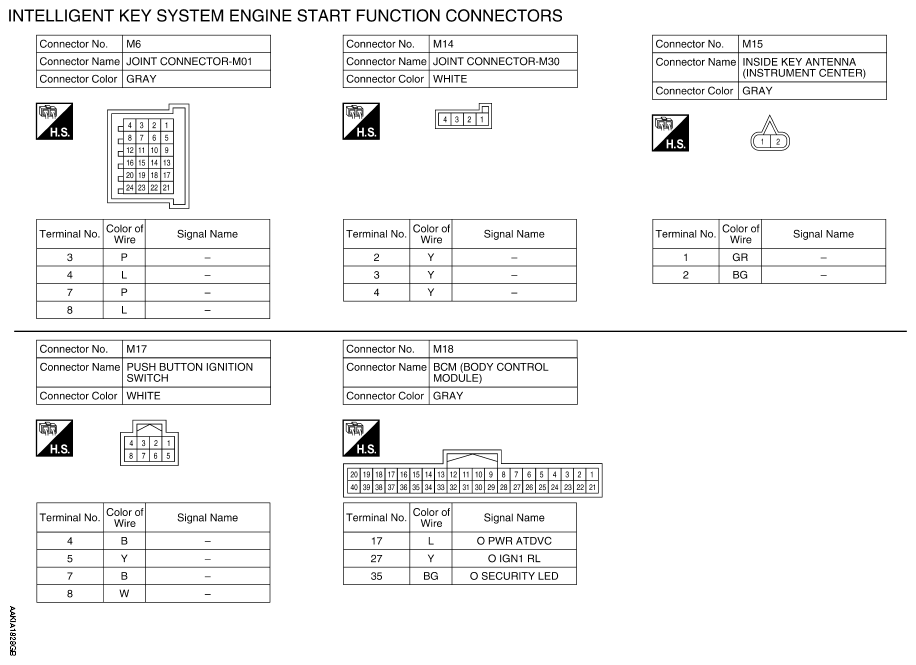

Fig 1: Intelligent Key System/Engine Start Function Connector End Views (1 Of 9)
G09158599Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Intelligent Key System/Engine Start Function Connector End Views (2 Of 9)
G09158600Courtesy of NISSAN NORTH AMERICA, INC.

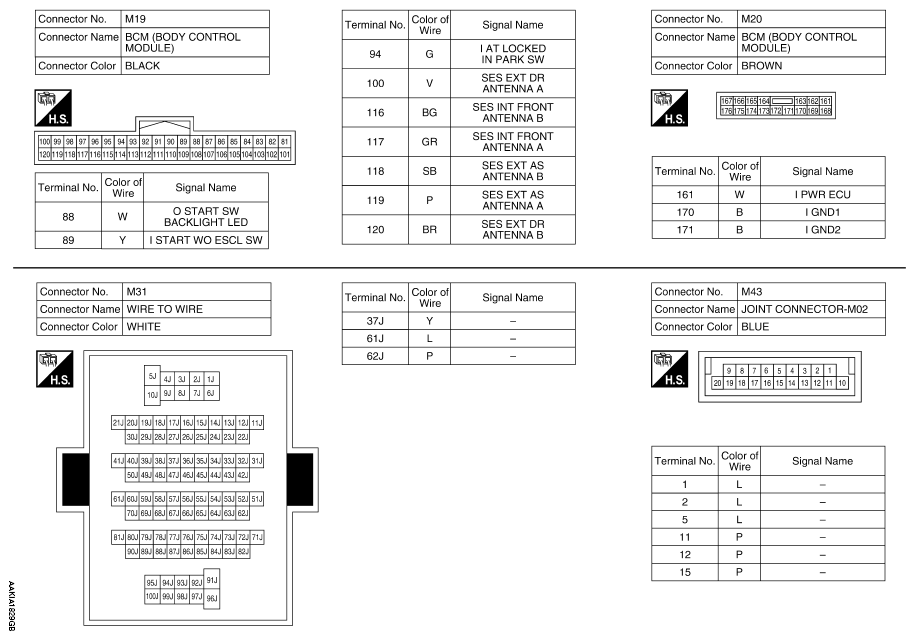

Fig 3: Intelligent Key System/Engine Start Function Connector End Views (3 Of 9)
G09158601Courtesy of NISSAN NORTH AMERICA, INC.

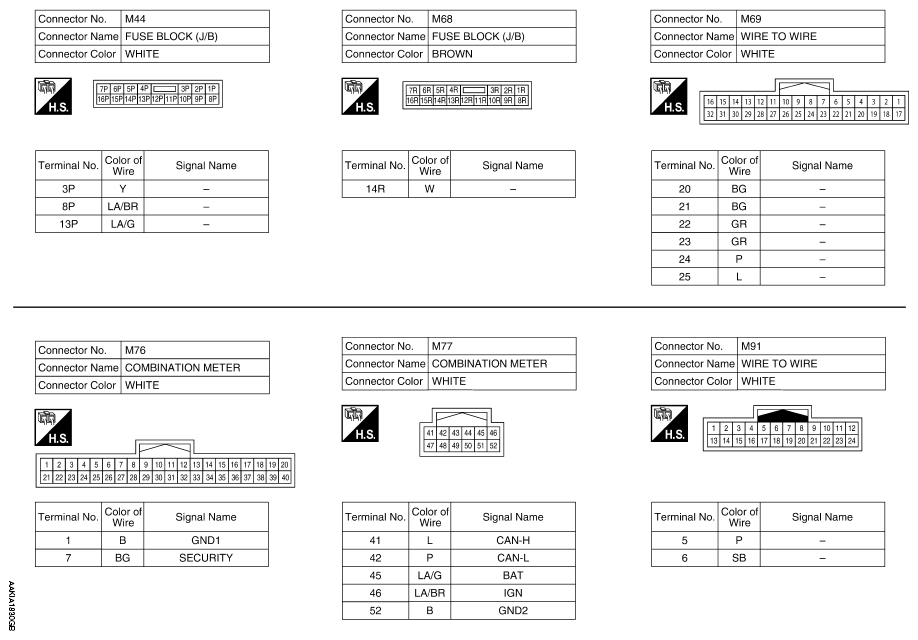

Fig 4: Intelligent Key System/Engine Start Function Connector End Views (4 Of 9)
G09158602Courtesy of NISSAN NORTH AMERICA, INC.

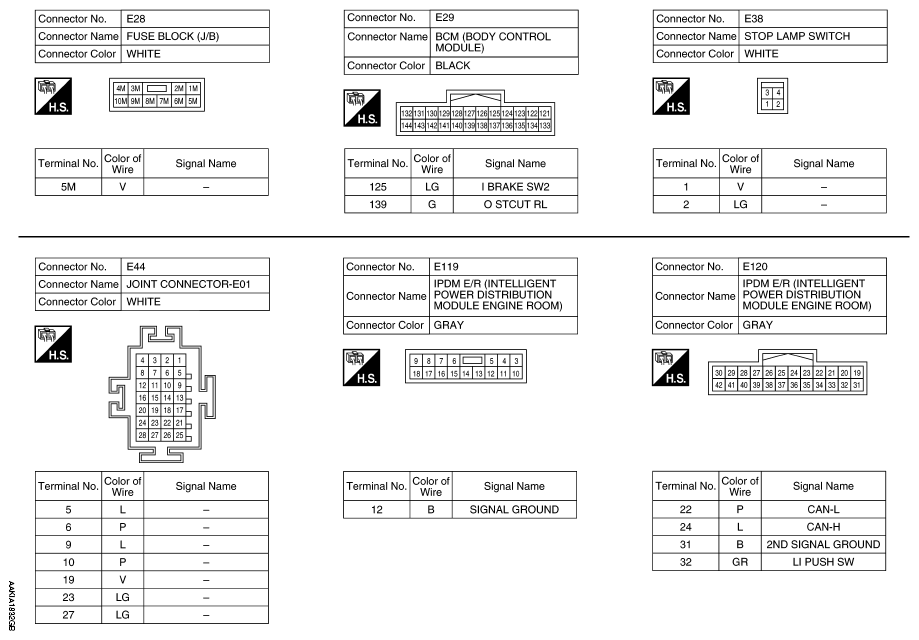

Fig 5: Intelligent Key System/Engine Start Function Connector End Views (5 Of 9)
G09158603Courtesy of NISSAN NORTH AMERICA, INC.

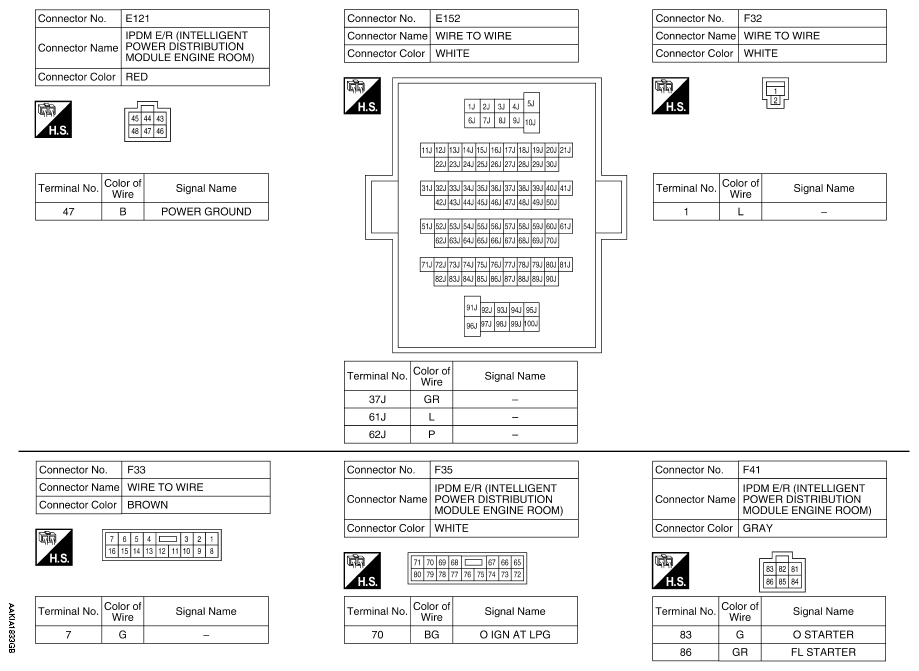

Fig 6: Intelligent Key System/Engine Start Function Connector End Views (6 Of 9)
G09158604Courtesy of NISSAN NORTH AMERICA, INC.

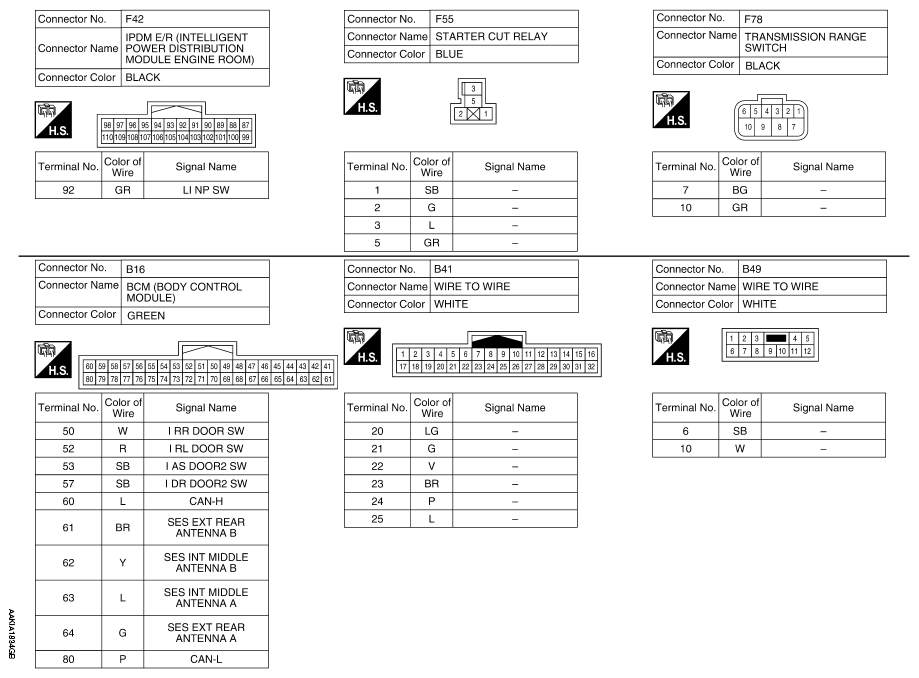

Fig 7: Intelligent Key System/Engine Start Function Connector End Views (7 Of 9)
G09158605Courtesy of NISSAN NORTH AMERICA, INC.

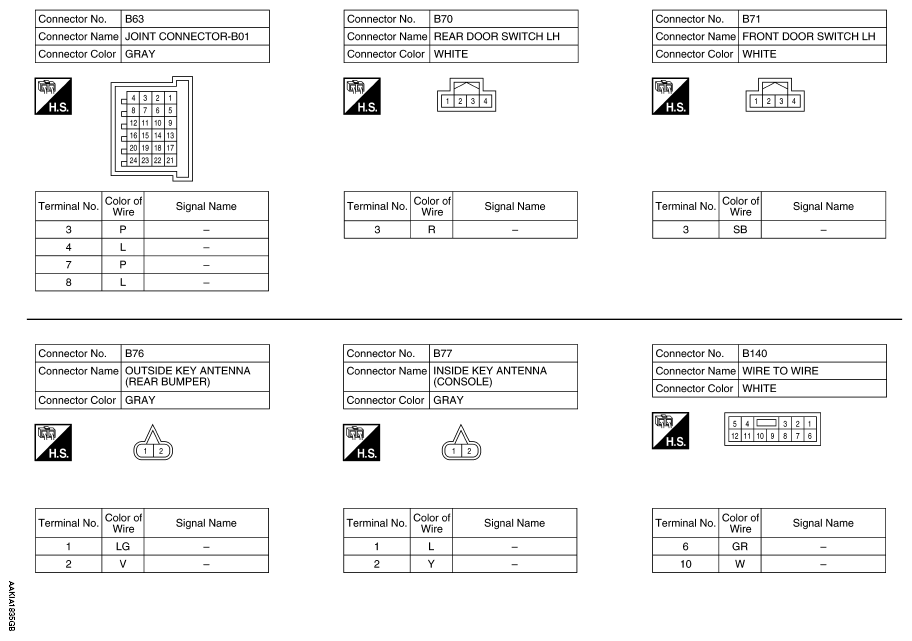

Fig 8: Intelligent Key System/Engine Start Function Connector End Views (8 Of 9)
G09158606Courtesy of NISSAN NORTH AMERICA, INC.

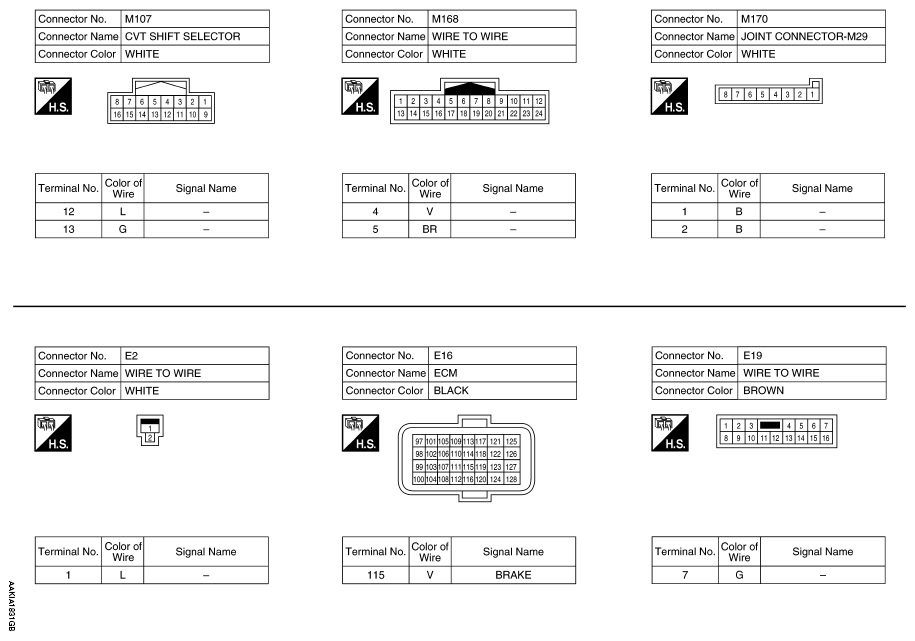

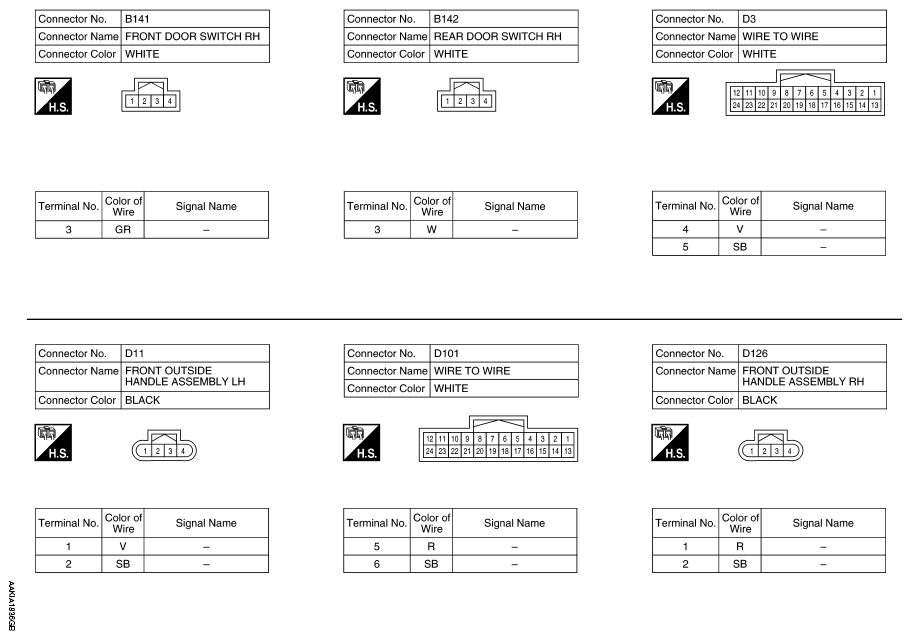

Fig 9: Intelligent Key System/Engine Start Function Connector End Views (9 Of 9)
G09158607Courtesy of NISSAN NORTH AMERICA, INC.
