Connector End Views

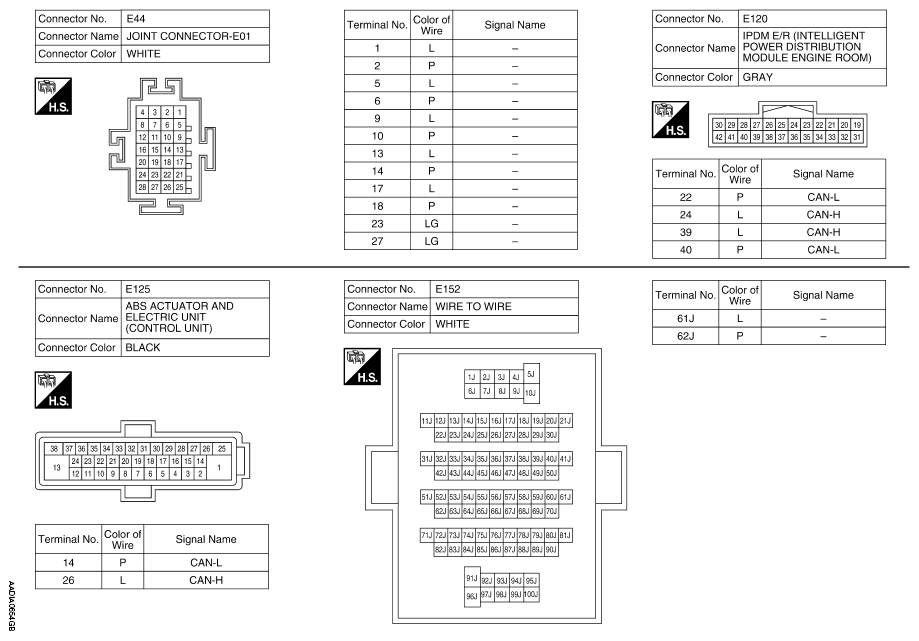

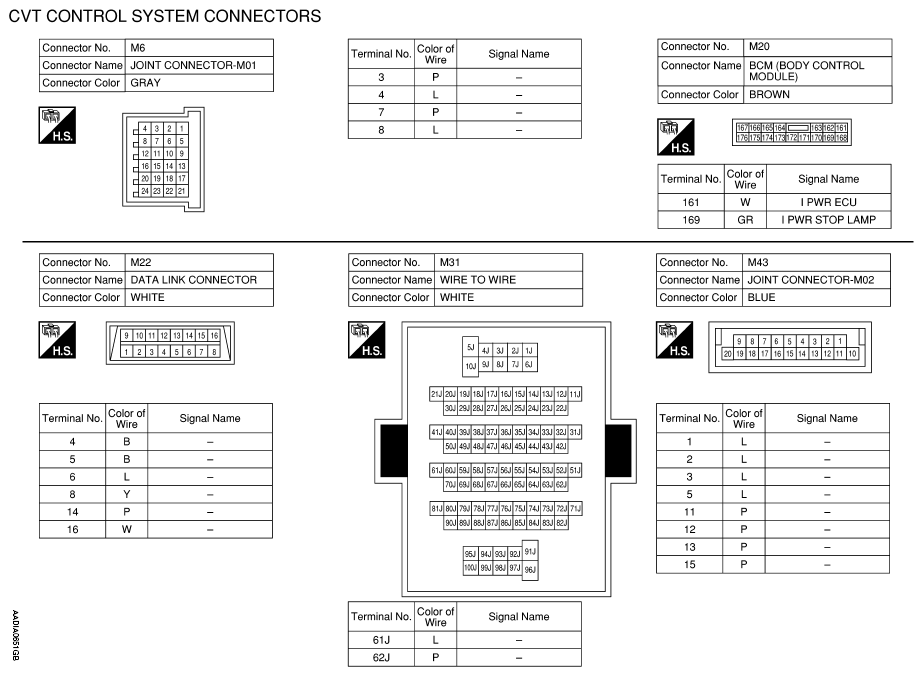

Fig 1: CVT Control System Connector End Views (1 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

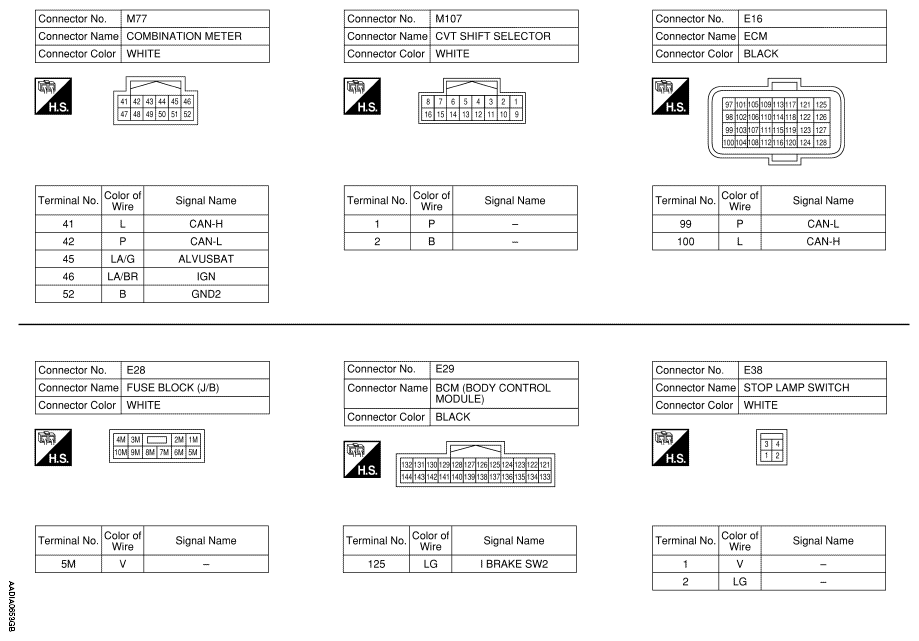

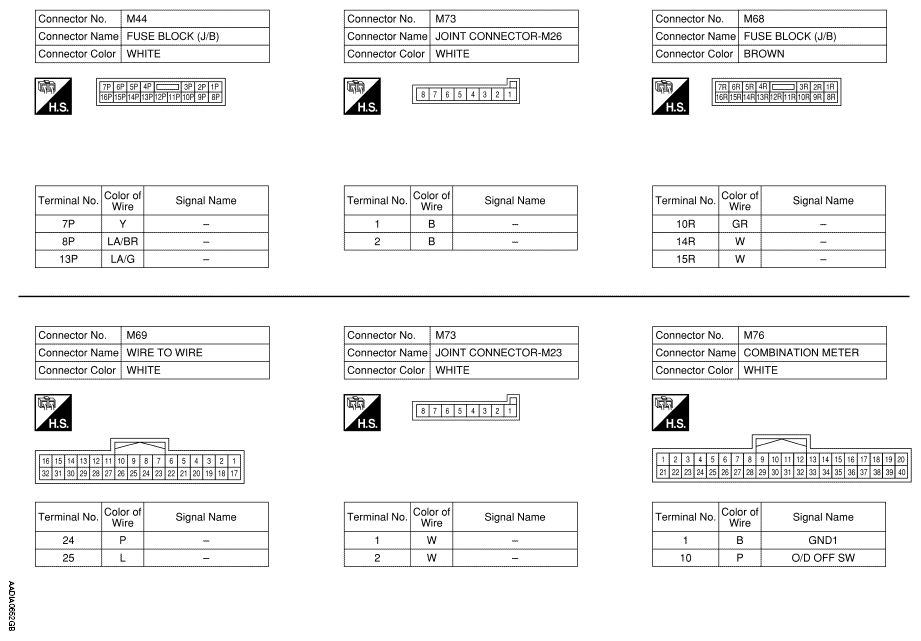

Fig 2: CVT Control System Connector End Views (2 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

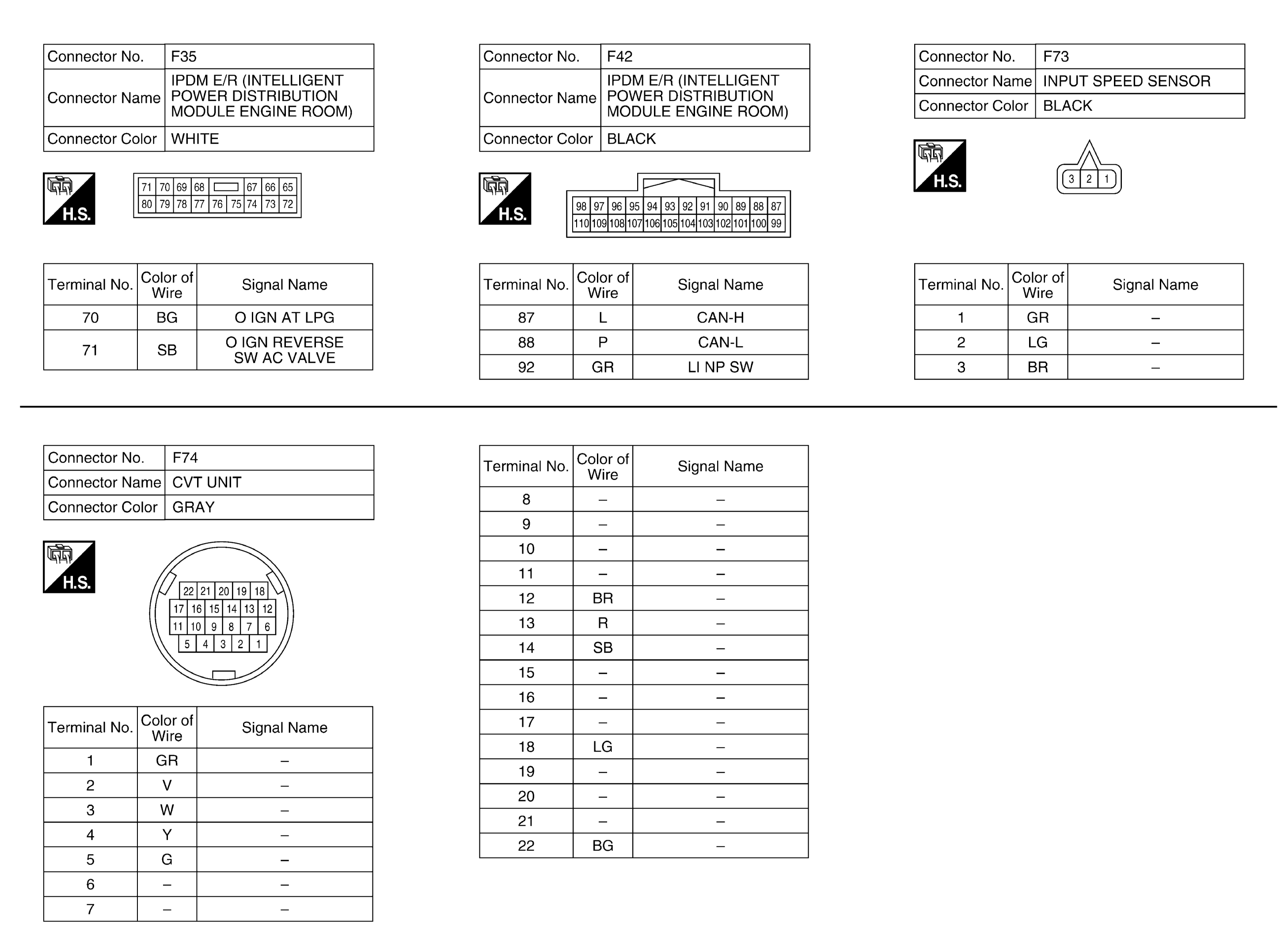

Fig 3: CVT Control System Connector End Views (3 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

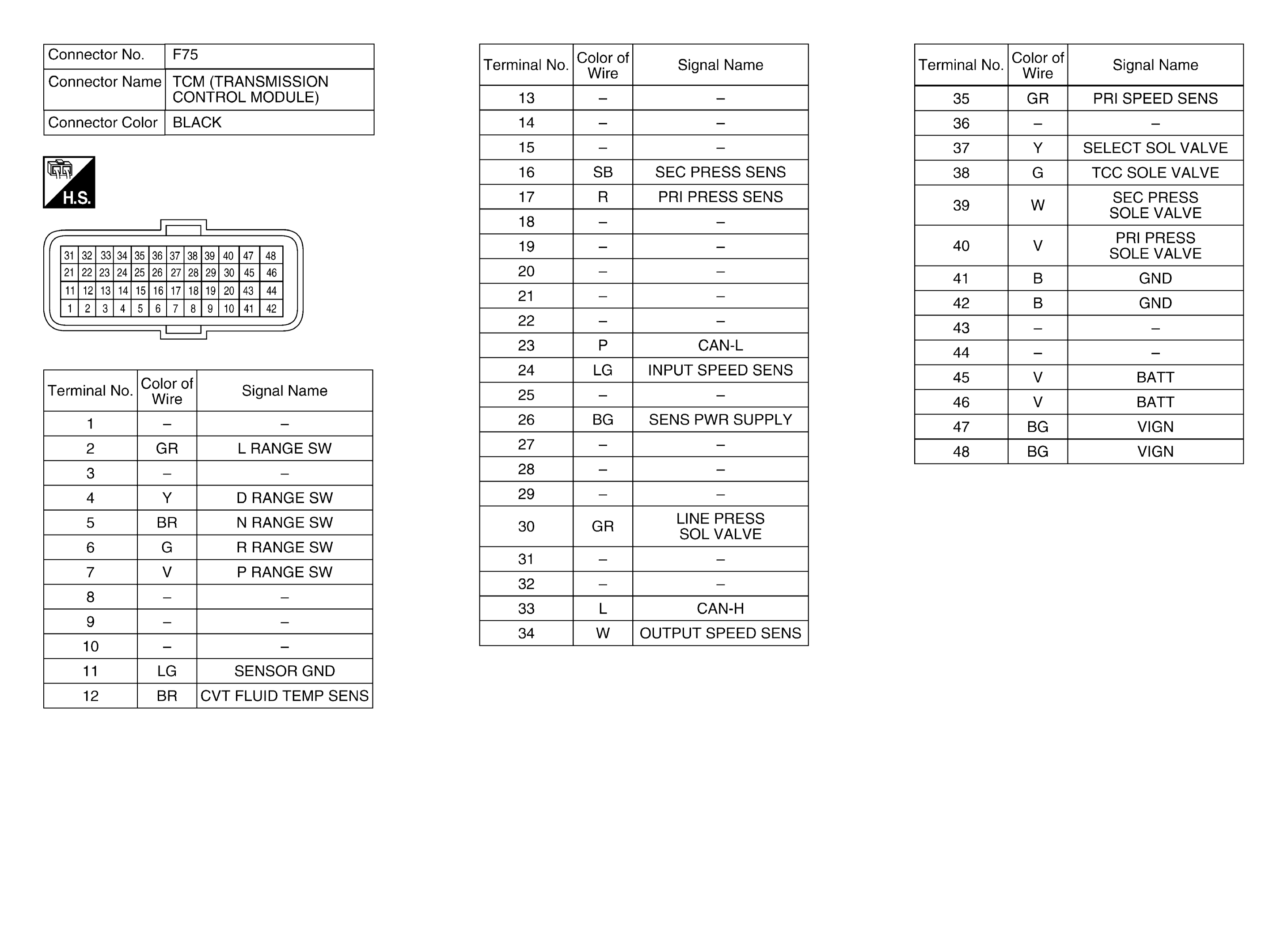

Fig 4: CVT Control System Connector End Views (4 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: CVT Control System Connector End Views (5 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: CVT Control System Connector End Views (6 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

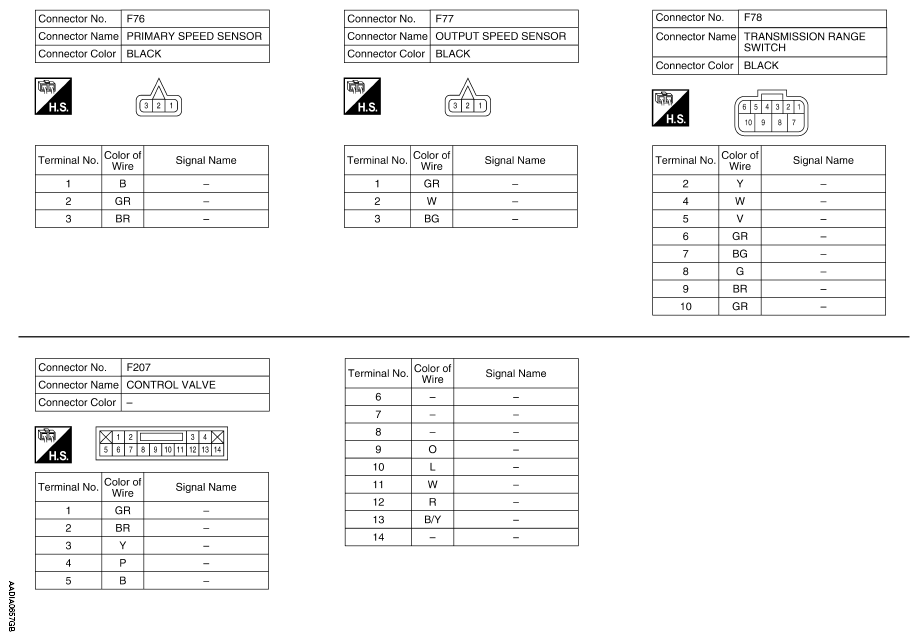

Fig 7: CVT Control System Connector End Views (7 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

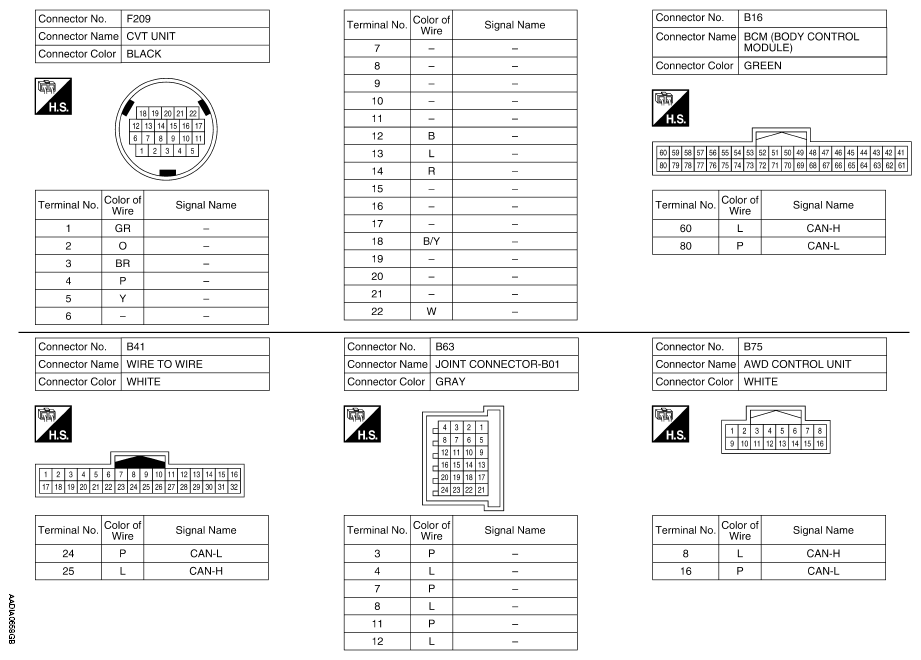

Fig 8: CVT Control System Connector End Views (8 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.
