Symptom Table 2

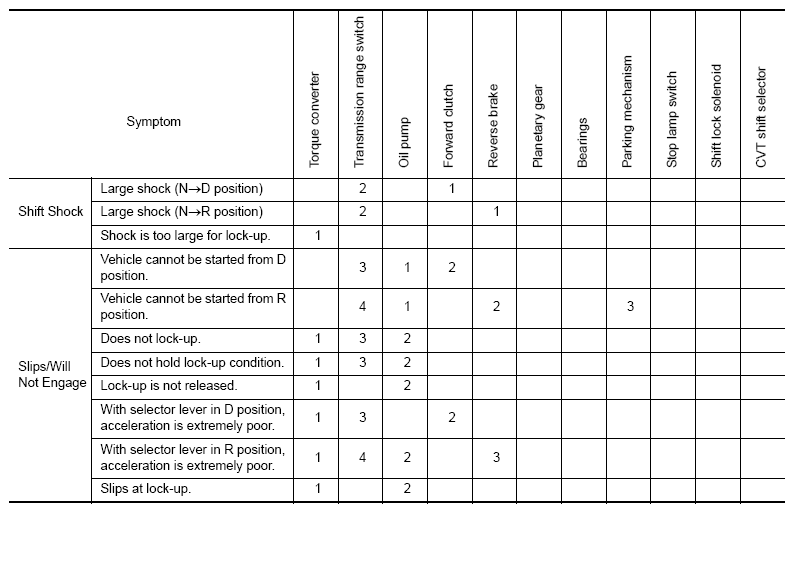

Fig 1: CVT Control System Symptom Table 2 (1 Of 2)

G09155948

Courtesy of NISSAN NORTH AMERICA, INC.

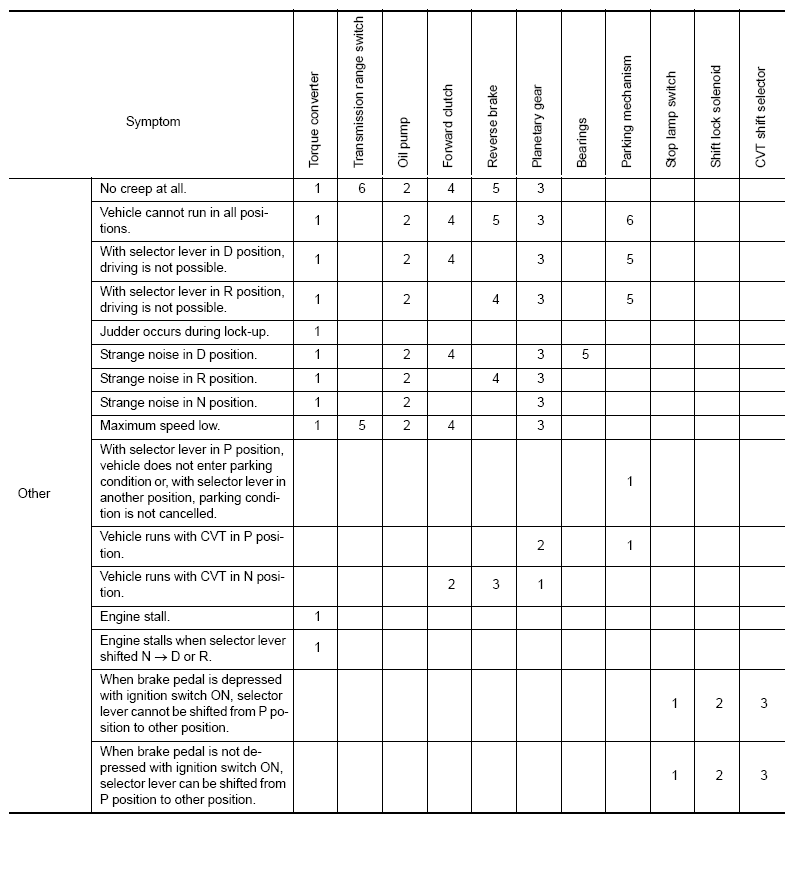

Fig 2: CVT Control System Symptom Table 2 (2 Of 2)

G09155949

Courtesy of NISSAN NORTH AMERICA, INC.
