Symptom Table 1

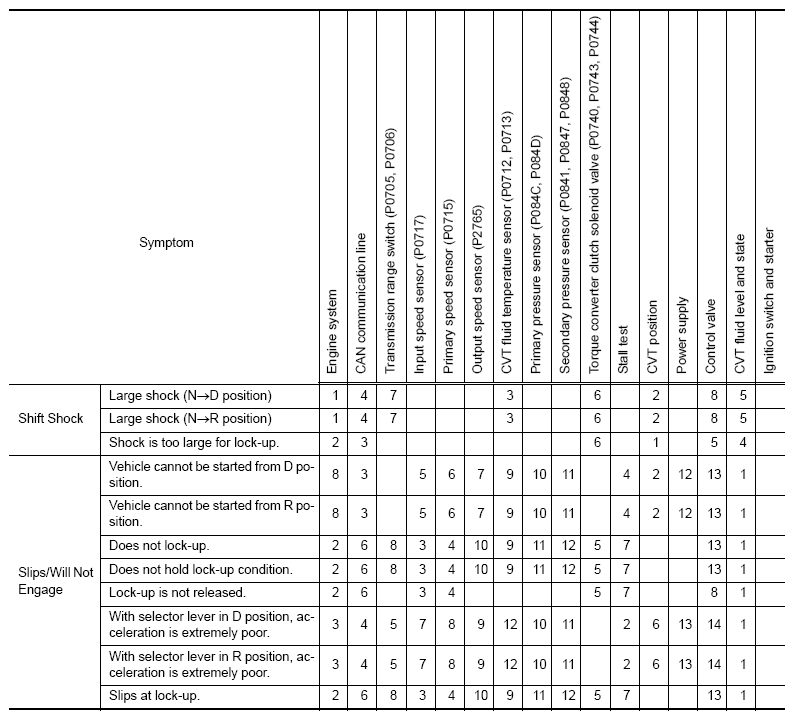

Fig 1: CVT Control System Symptom Table 1 (1 Of 2)

G09155946

Courtesy of NISSAN NORTH AMERICA, INC.

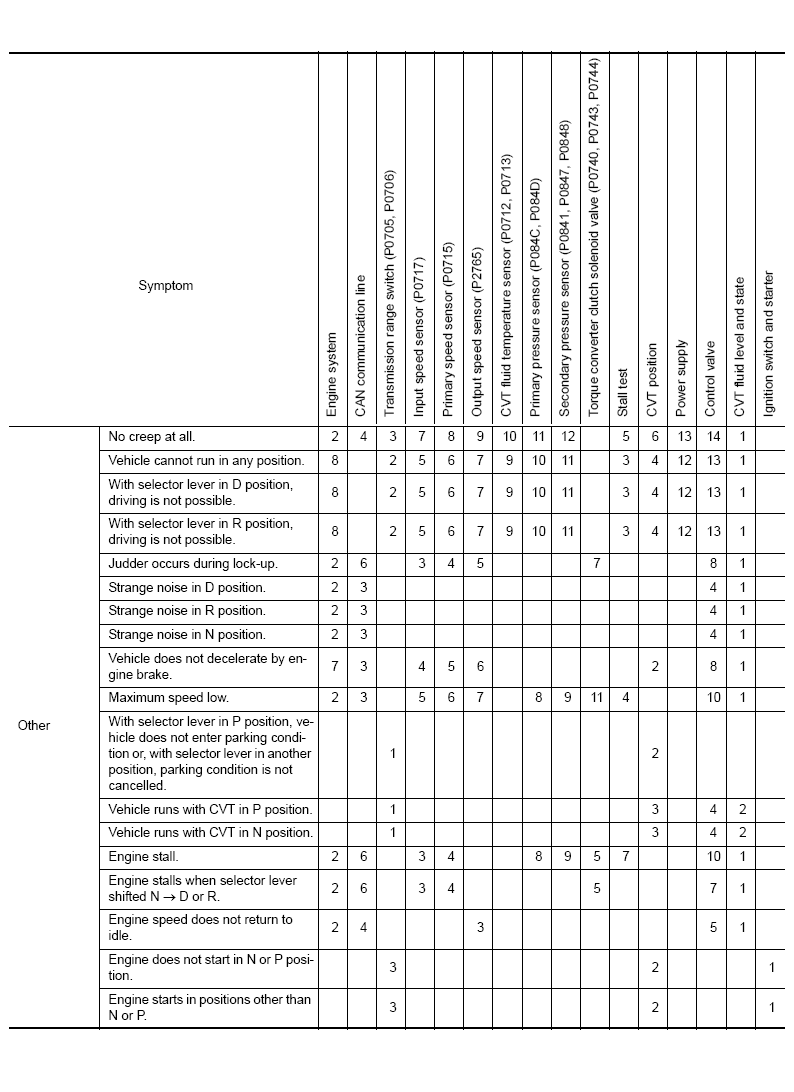

Fig 2: CVT Control System Symptom Table 1 (2 Of 2)

G09155947

Courtesy of NISSAN NORTH AMERICA, INC.
