CVT Position: Adjustment

Move the selector lever to the "P" position.
CAUTION: Rotate the wheels at least a quarter turn and be certain the Park position mechanism is fully engaged.
Loosen nut (A) and set manual lever (1) to the "P" position.
CAUTION: Do not apply force to the manual lever.
Hold the control cable (2) and push it to direction of the arrow with a specified force.
Specified force: 9.8 N (1.0 kg, 2.2 lb)
Temporarily tighten the nut with the control cable loose.
Tighten the nut to the specified torque. Refer to "EXPLODED VIEW ".

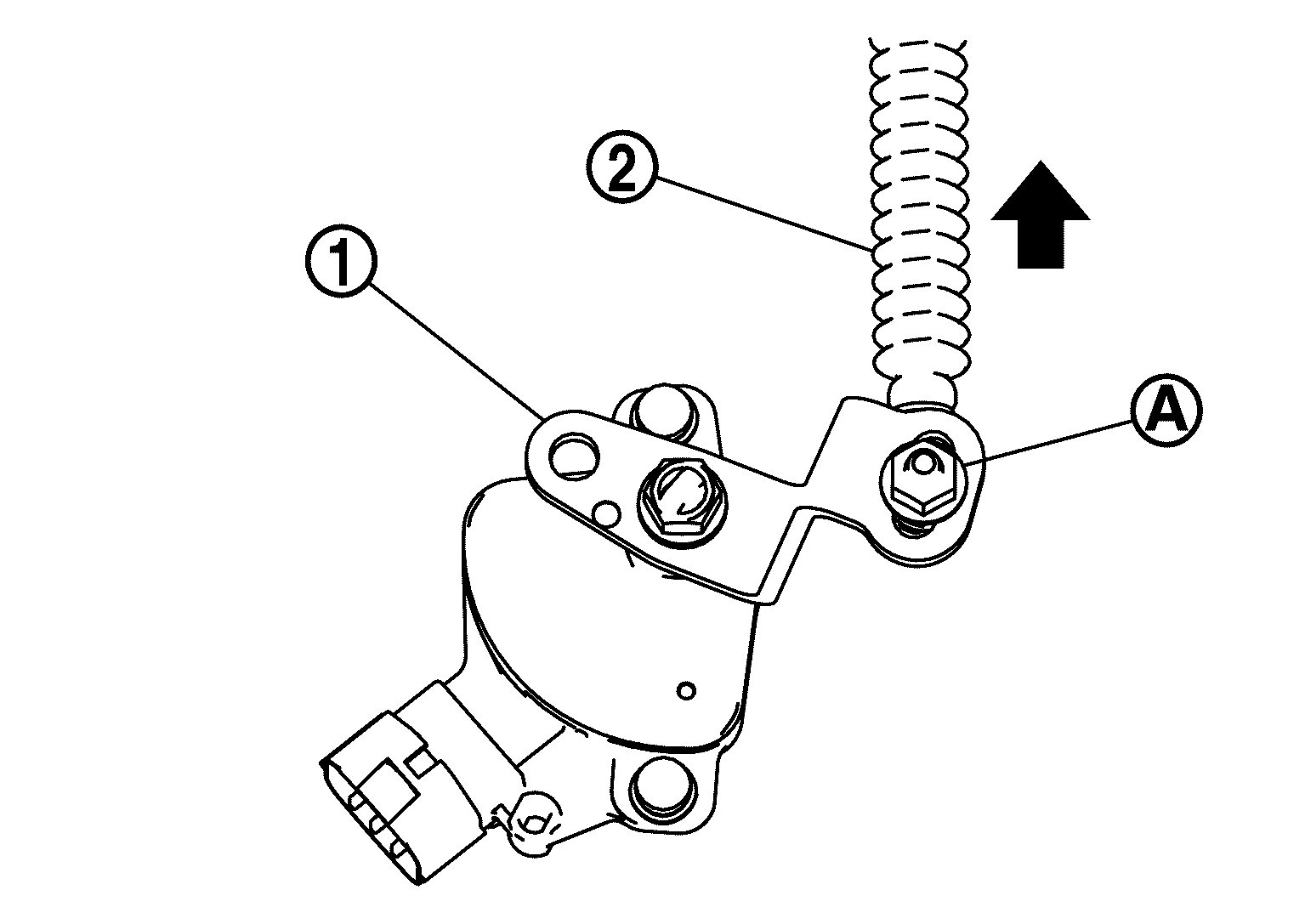

Fig 1: Identifying Manual Lever And Control Cable Nut
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Hold the manual lever securely in the "P" position when tightening control cable nut.
