Work Procedure

SAVE TCM DATA (VEHICLE SPECIFICATIONS)
With CONSULT
1. Turn ignition switch OFF.
2. Turn ignition switch ON.
3. Select "Re/programming, Configuration".
4. Select "AT/CVT".
  NOTE: If "AT/CVT" is not displayed and TCM data cannot be saved on CONSULT, GO TO 2.
5. Select "Programming".
6. Save TCM data on CONSULT according to the CONSULT display.
  : GO TO 2.
REPLACE TCM AND TRANSAXLE ASSEMBLY
1. Turn ignition switch OFF and wait for 10 seconds.
2. Replace TCM and transaxle assembly. Refer to "REMOVAL AND INSTALLATION " (TCM), "REMOVAL AND INSTALLATION " (Transaxle assembly).
  : GO TO 3.
WRITE TCM DATA (VEHICLE SPECIFICATIONS)
With CONSULT
1. Select "Programming".
2. Perform programming according to the CONSULT display.
  : GO TO 4.
CHECK THE SERIAL NUMBER
Write down the serial number of new transaxle assembly.

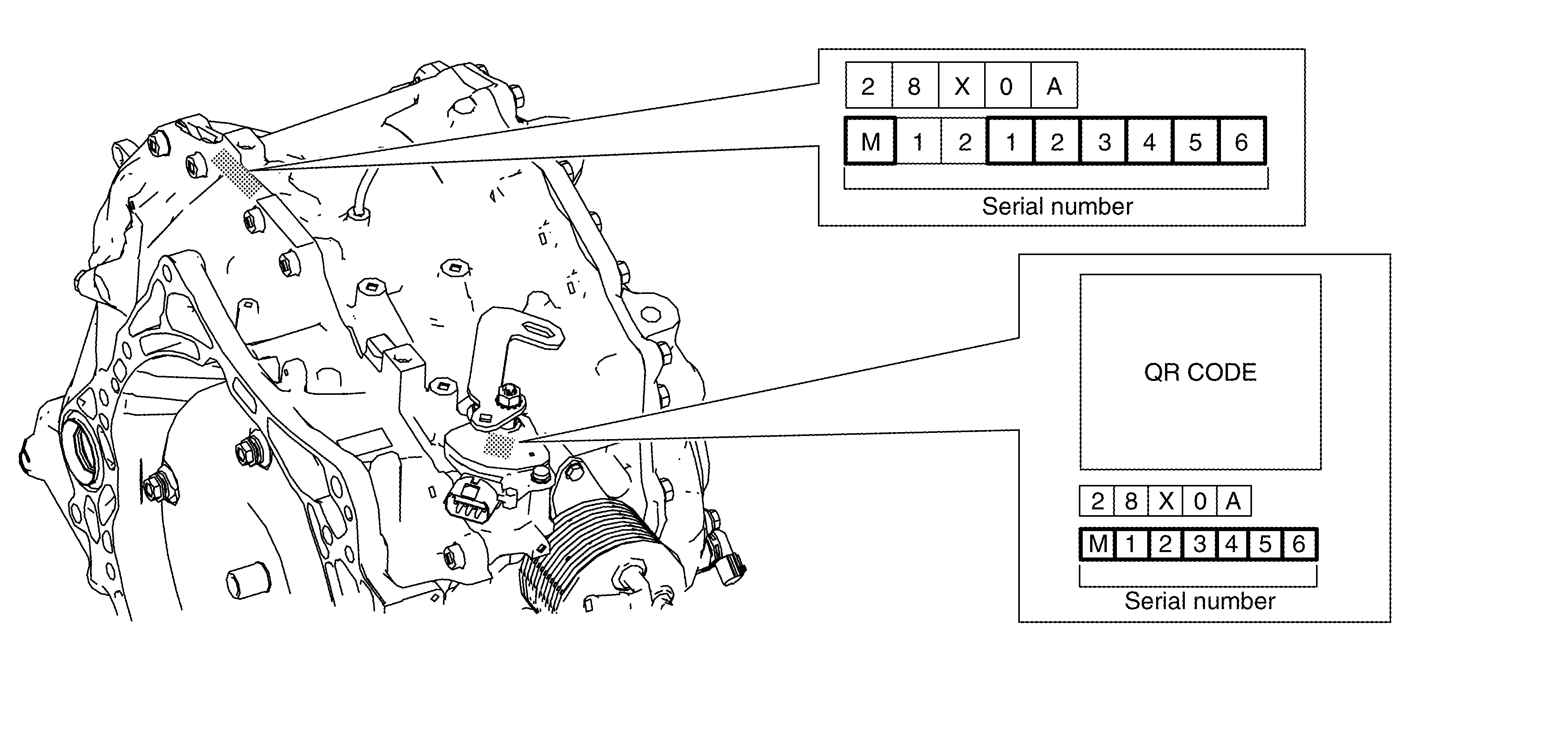

Fig 1: Identifying Serial Number And QR Code On Transaxle Assembly
Courtesy of NISSAN NORTH AMERICA, INC.

: GO TO 5.
WRITE TCM DATA (IP CHARACTERISTICS VALUE)
NOTE: Write data of new solenoid in TCM according to the following instructions:

With CONSULT

CAUTION: When the work is interrupted, obtain data again from the supplied CD.
1. Shift the selector lever to the P position.
2. Turn ignition switch OFF and wait for 10 seconds.
3. Turn ignition switch ON.
4. Insert the supplied CD into CONSULT.
5. Select "Work Support" in "TRANSMISSION".
6. Select "WRITE IP CHARA - REPLACEMENT AT/CVT".
7. Check that the serial number displayed on CONSULT screen and those written in the memo agree.
8. Write data in TCM according to the instructions on the CONSULT screen.
  NOTE: When writing is complete, the shift position indicator of the combination meter displays P.

  : WORK END
