Display And Warning

WARNING: This page is about a different car, the 2016 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

System Display

The BSW systems operate when ON is selected with the combination meter.

System status	Condition	Display on combination meter
System status	Condition	Upper part	Middle part
BSW OFF	-	-	White Courtesy of NISSAN NORTH AMERICA, INC.

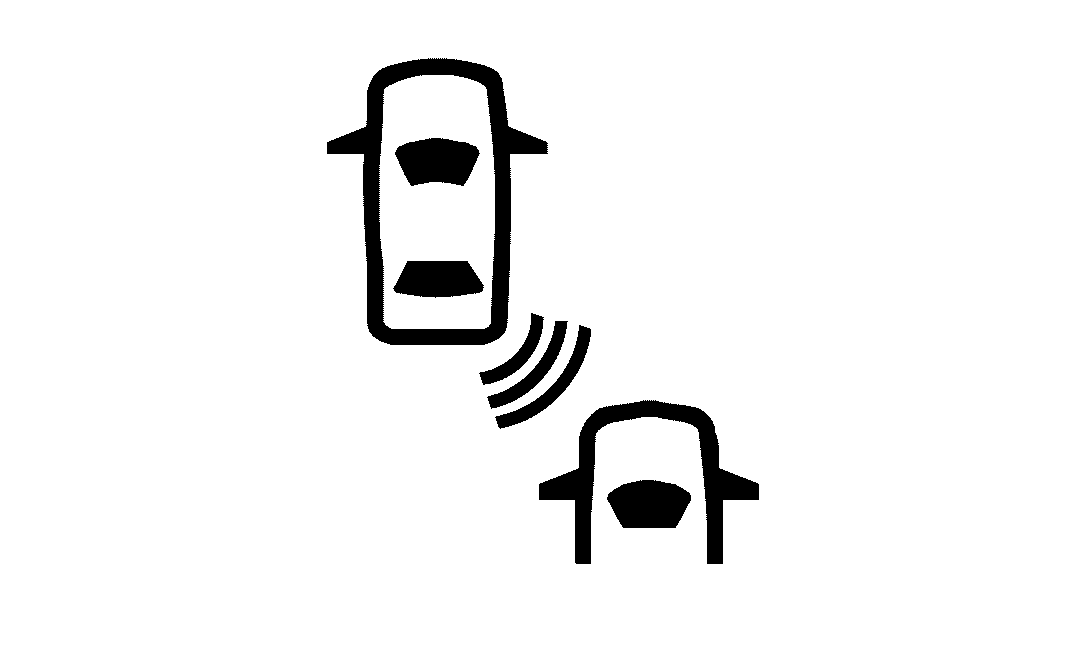

BSW ON	System ON	White Courtesy of NISSAN NORTH AMERICA, INC.	White Courtesy of NISSAN NORTH AMERICA, INC.

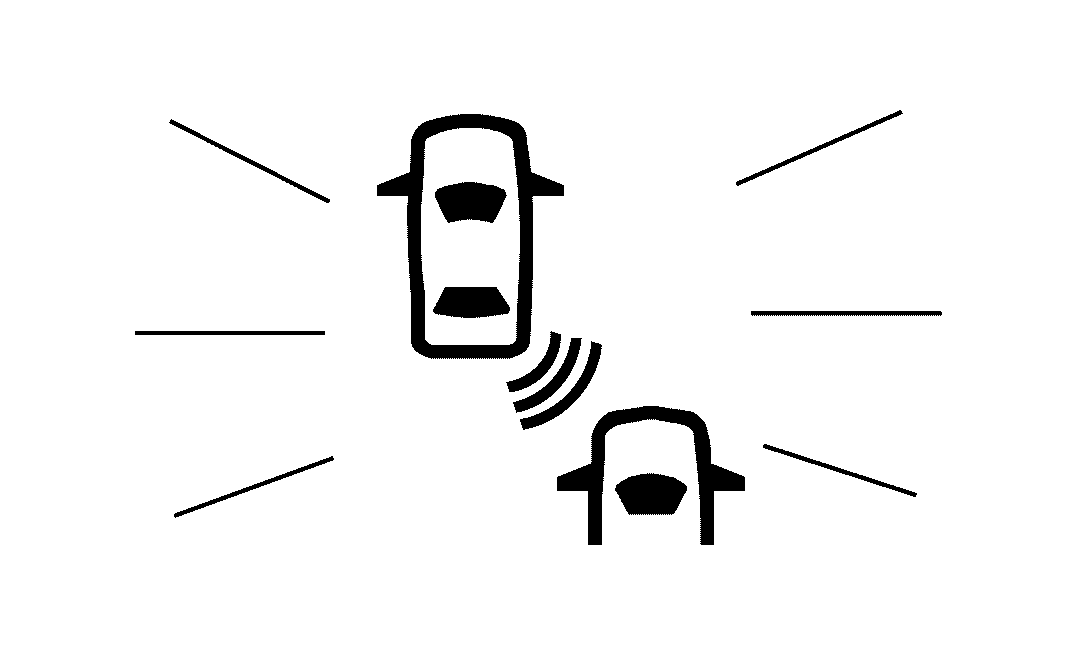

BSW is malfunction	The BSW system is automatically canceled.	Orange Courtesy of NISSAN NORTH AMERICA, INC.	Orange Courtesy of NISSAN NORTH AMERICA, INC.

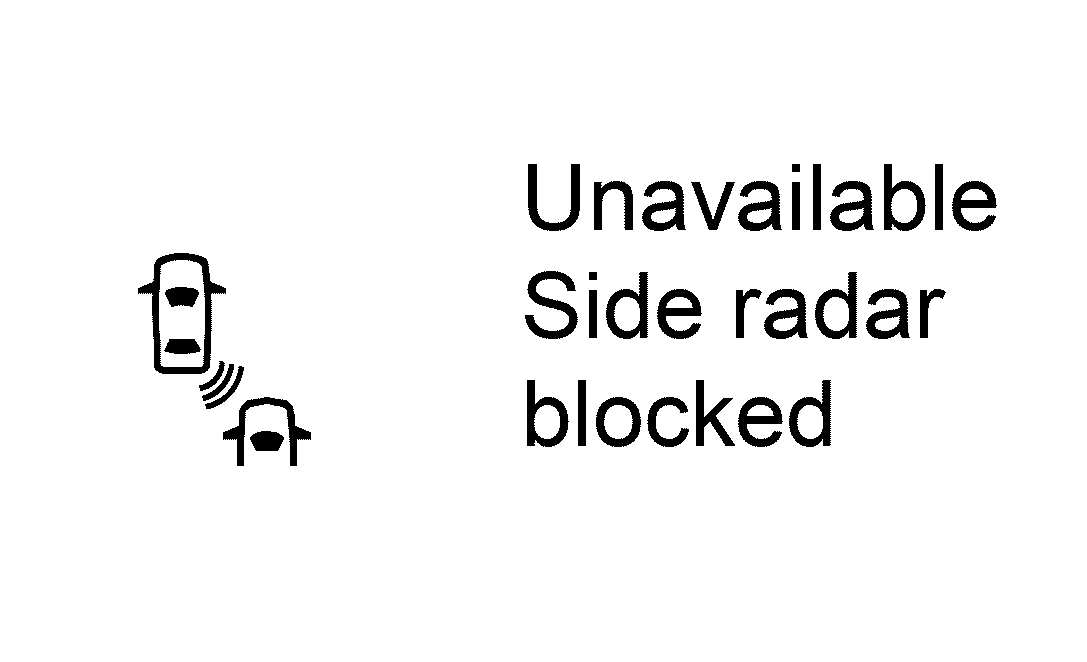

Side radar blocked	The BSW system is automatically canceled.	White (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	White (Blink) Courtesy of NISSAN NORTH AMERICA, INC.
Side radar blocked	The BSW system is automatically canceled.	White (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Courtesy of NISSAN NORTH AMERICA, INC.

Display And Warning Operation

Vehicle condition/ Driver's operation			Action
Vehicle speed (Approx.)	Turn signal condition	Status of vehicle detection within detection area	Indication on the BSW indicator	Indication on the combination meter		Buzzer
Vehicle speed (Approx.)	Turn signal condition	Status of vehicle detection within detection area	Indication on the BSW indicator	Upper part	Middle part	Buzzer

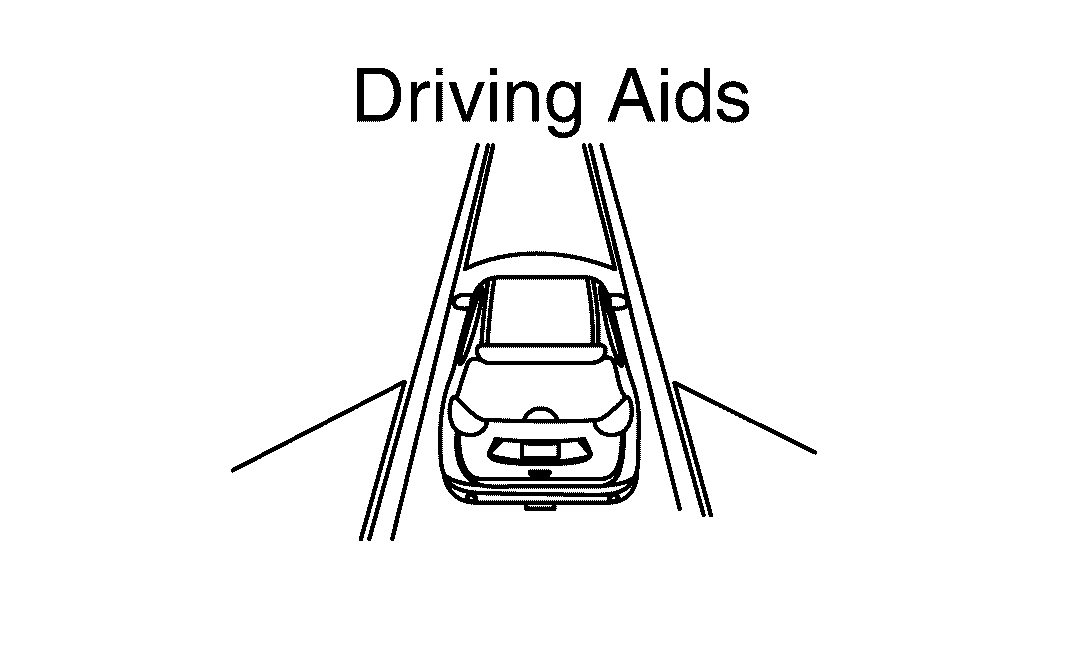

Less than 29 km/h (18 MPH)	-	-	OFF	White Courtesy of NISSAN NORTH AMERICA, INC.	White Courtesy of NISSAN NORTH AMERICA, INC.	OFF
32 km/h (20 MPH) or more	-	Vehicle is not detected	OFF	White Courtesy of NISSAN NORTH AMERICA, INC.	White Courtesy of NISSAN NORTH AMERICA, INC.	OFF

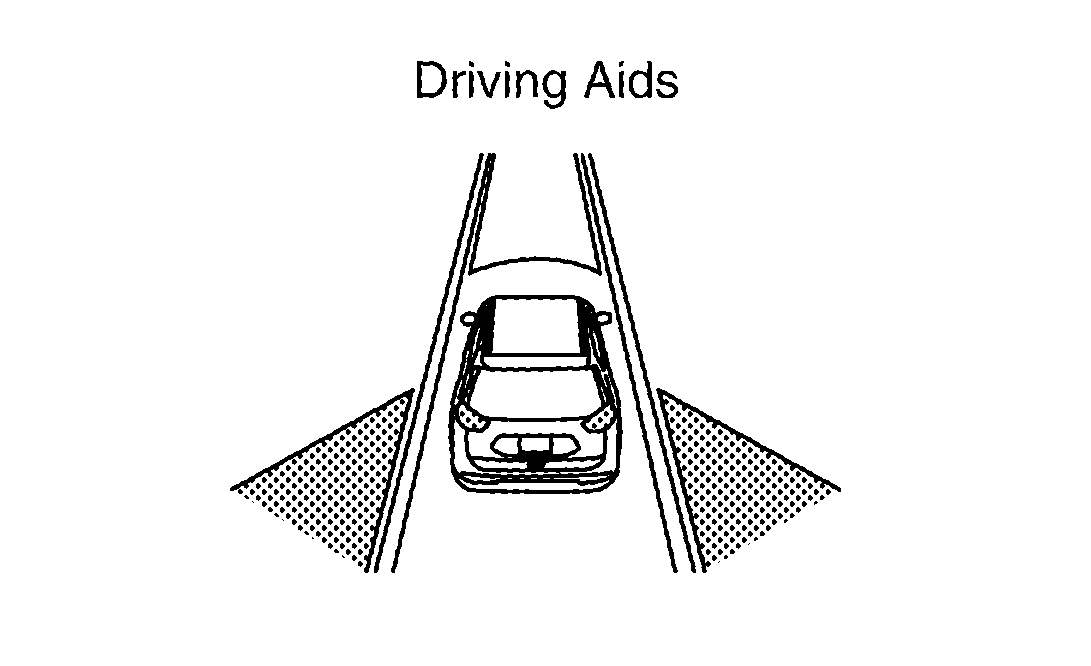

	OFF	Vehicle is detected	ON	White Courtesy of NISSAN NORTH AMERICA, INC.	White Courtesy of NISSAN NORTH AMERICA, INC.	OFF

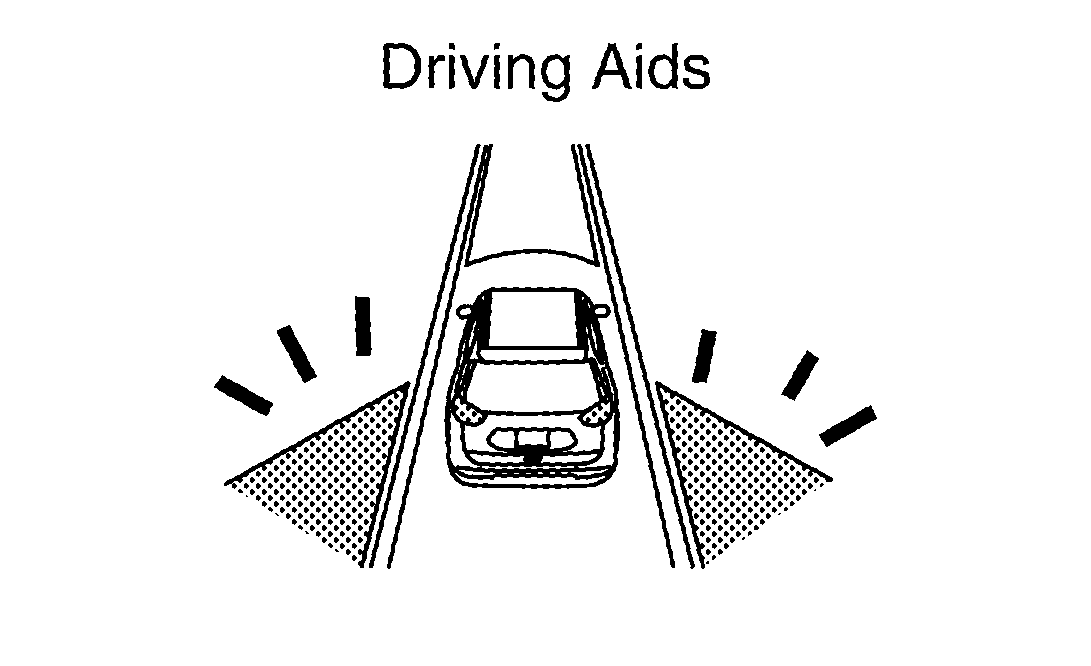

	ON (vehicle detected direction)	Before turn signal operates Vehicle is detected	Blink	White Courtesy of NISSAN NORTH AMERICA, INC.	Orange (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Short continuous beeps
	ON (vehicle detected direction)	Vehicle is detected after turn signal operates	Blink	White Courtesy of NISSAN NORTH AMERICA, INC.	Orange (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	OFF

NOTE:

If vehicle speed exceeds approximately 32 km/h (20 MPH), BSW function operates until the vehicle speed becomes lower than approximately 29 km/h (18 MPH).
Time shown in the figure is approximate time.
