System Diagram

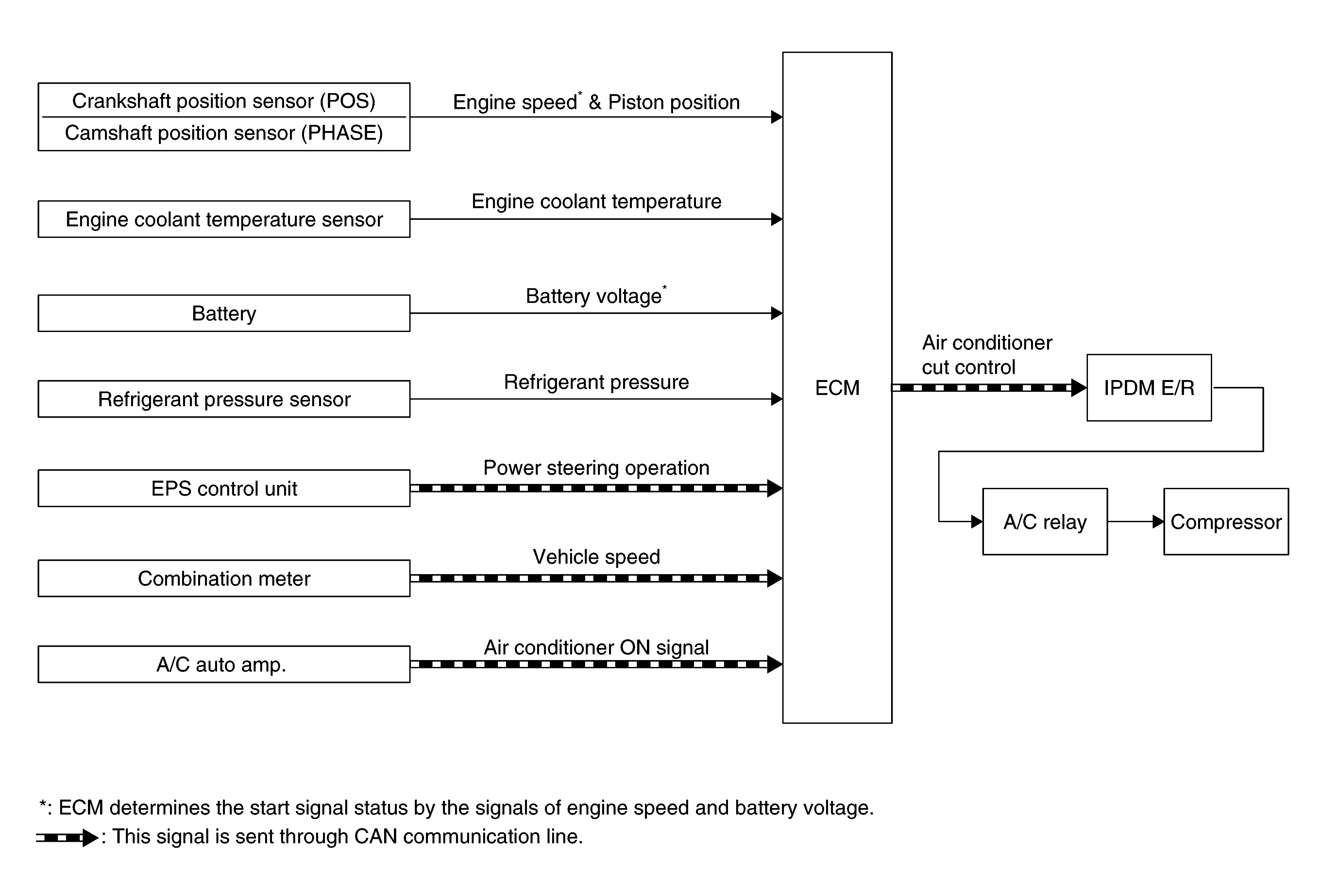

Fig 1: Air Conditioning Cut Control System Diagram

G09155570

Courtesy of NISSAN NORTH AMERICA, INC.
