Ignition Timing: Inspection

  1. CHECK IGNITION TIMING
    1. Attach timing light (A) to the ignition coil No. 1 harness (1).

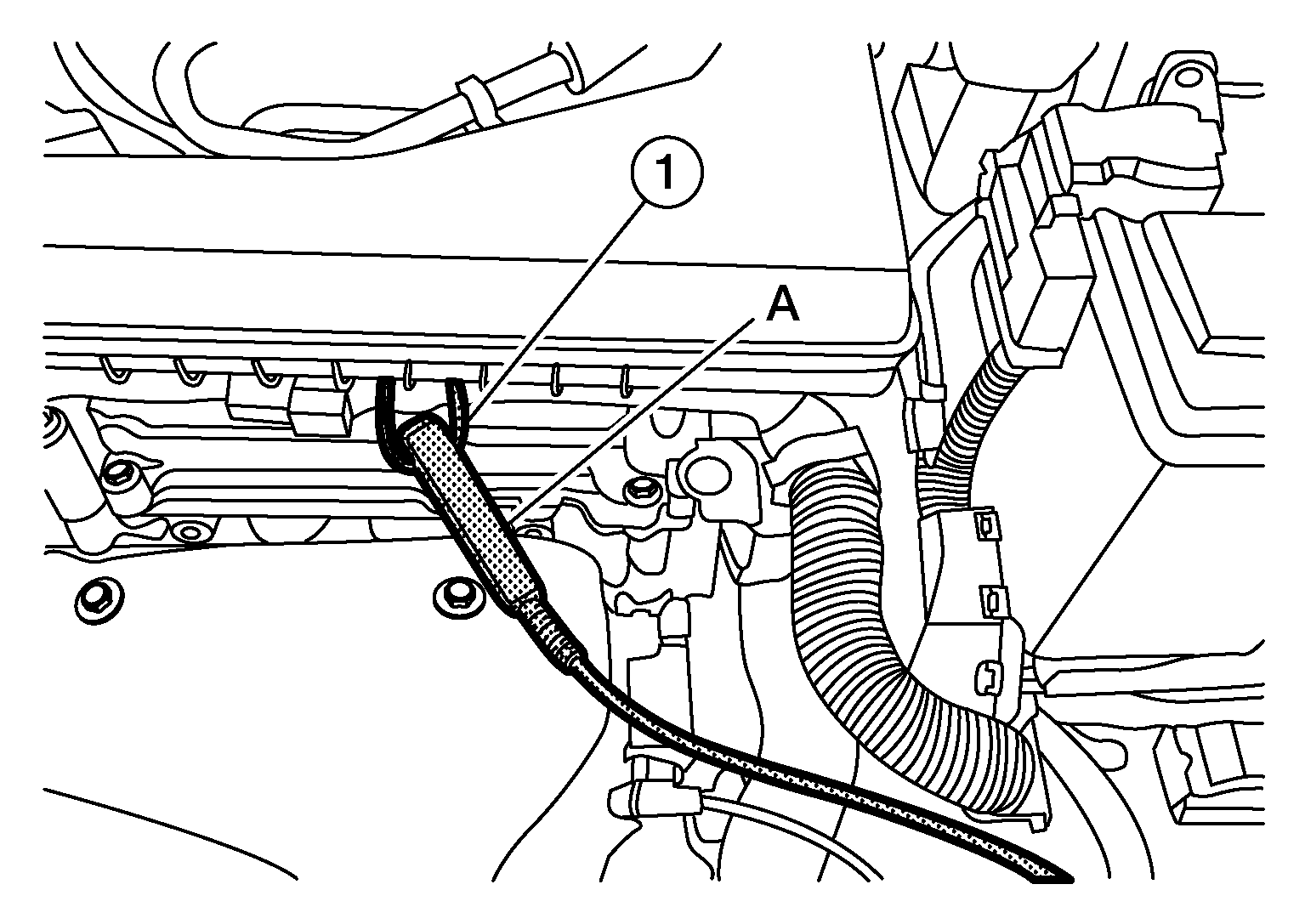

      Fig 1: Identifying Timing Light And Ignition Coil No. 1 Harness
      G09155757Courtesy of NISSAN NORTH AMERICA, INC.
    2. Check ignition timing.

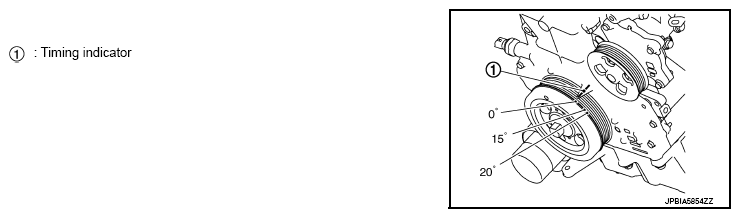

      Fig 2: Checking Ignition Timing Using Timing Indicator
      G09155758Courtesy of NISSAN NORTH AMERICA, INC.

      : INSPECTION END
