Nissan-Datsun
>>
2014
>>
Rogue SL, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Unit Disassembly And Assembly
>>
Third Row Seat
>>
Exploded View
Exploded View

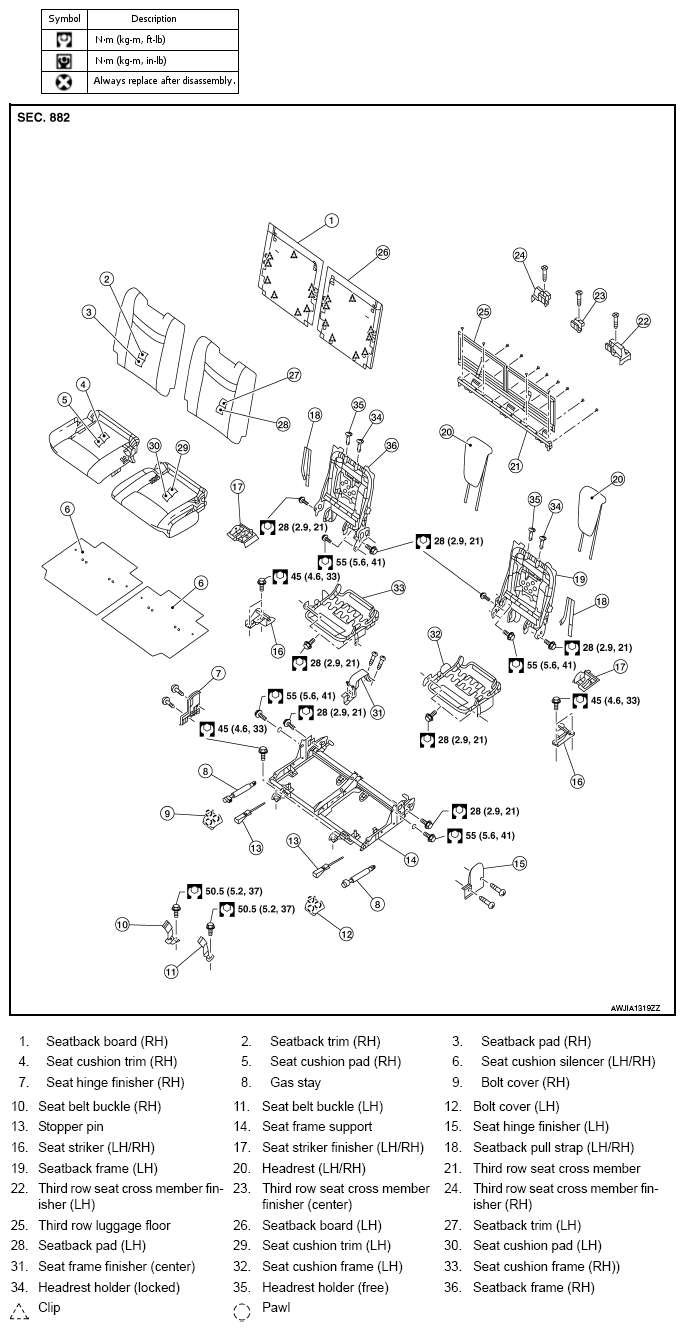

Fig 1: Exploded View Of Third Row Seat With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
