Exploded View

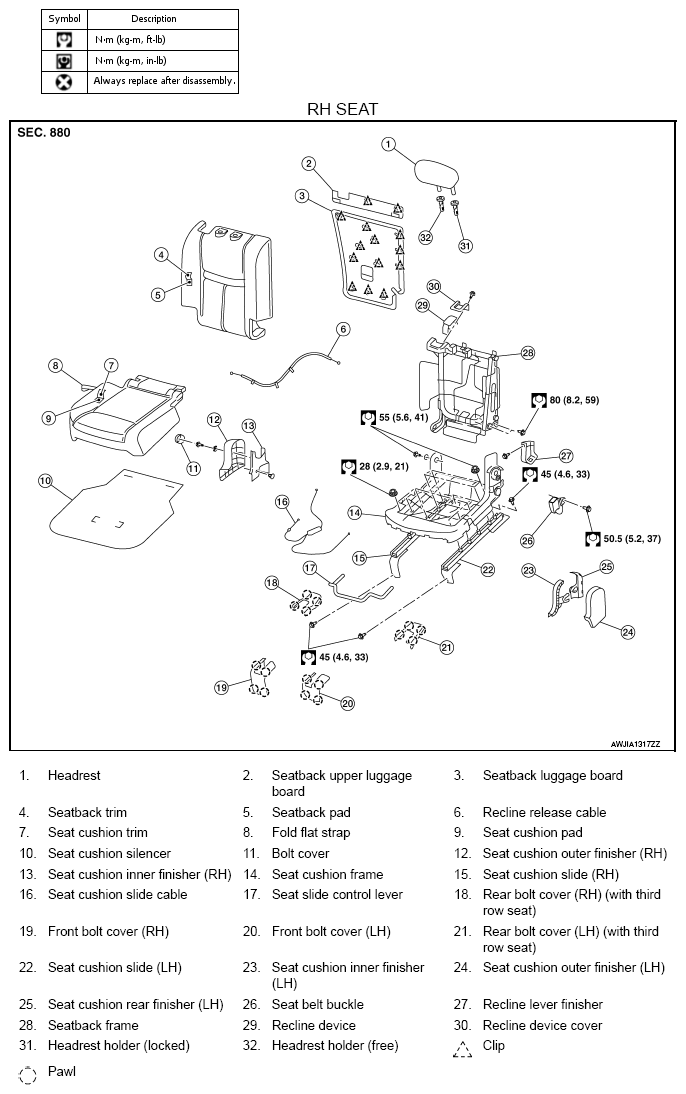

Fig 1: Exploded View Of Second Row Seat (RH Seat) With Torque Specifications
G09158228Courtesy of NISSAN NORTH AMERICA, INC.

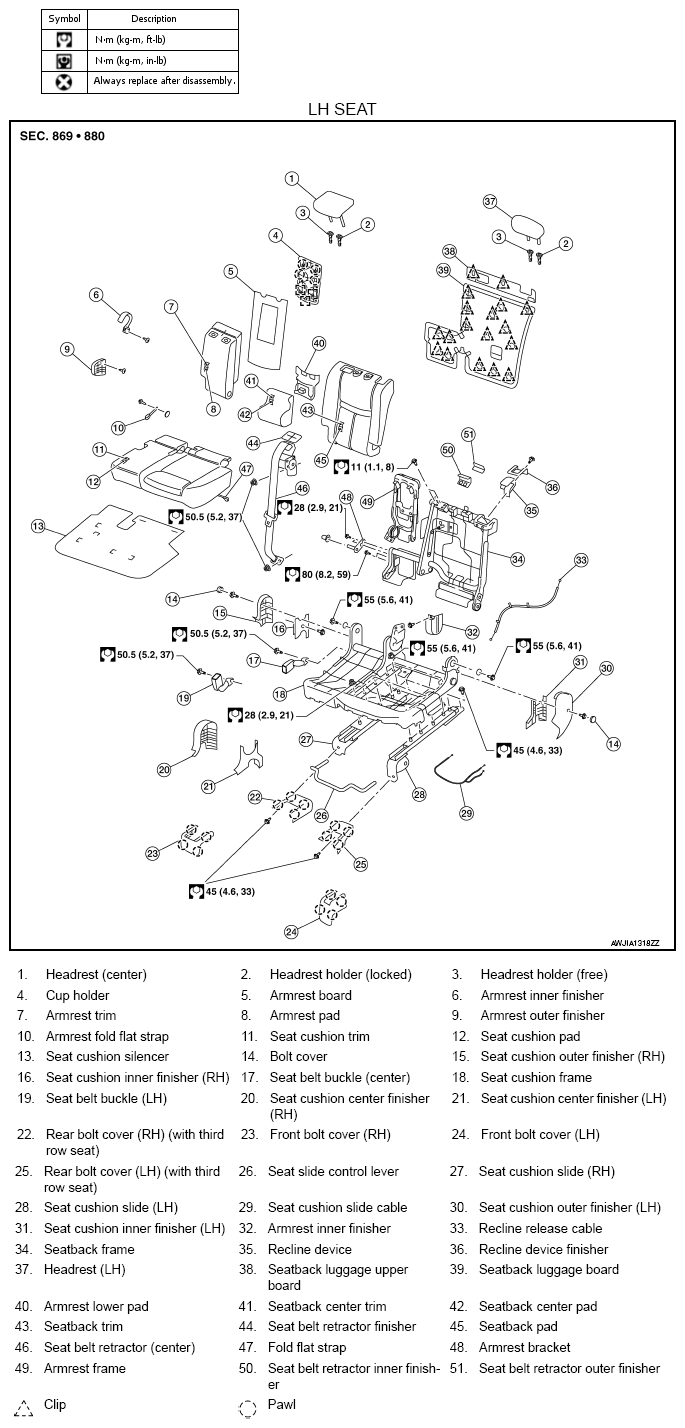

Fig 2: Exploded View Of Second Row Seat (LH Seat) With Torque Specifications
G09158229Courtesy of NISSAN NORTH AMERICA, INC.
