Nissan-Datsun
>>
2014
>>
Rogue S, AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
Unit Disassembly And Assembly
>>
Transfer Cover
>>
Exploded View
Exploded View

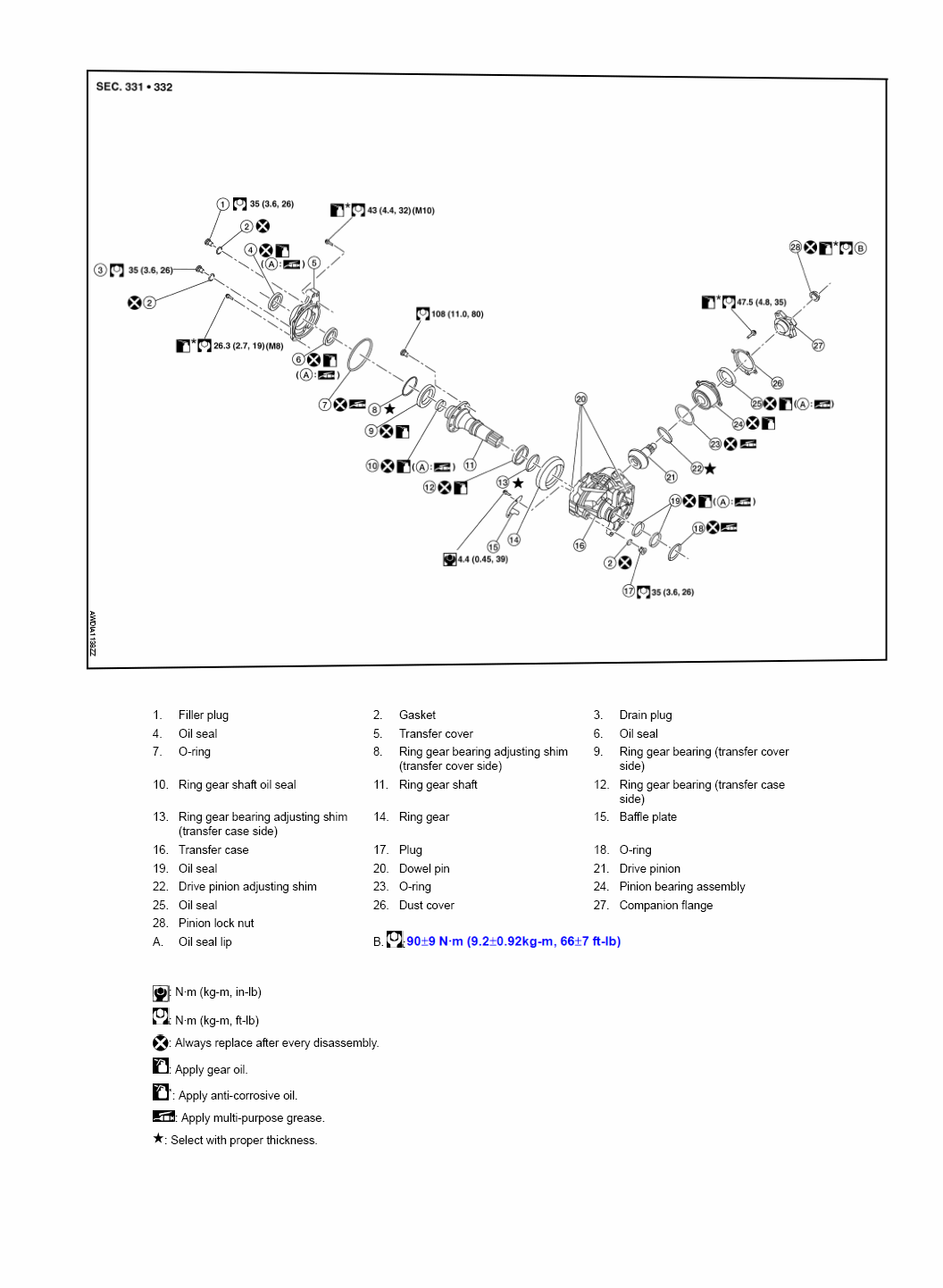

Fig 1: Exploded View Of Transfer Cover With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
